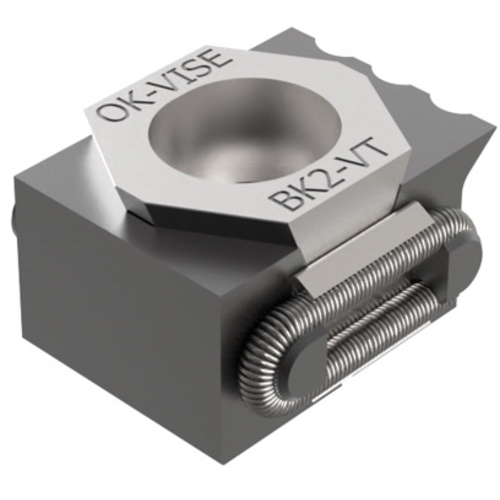

Knife Edge Grip Jaw Clamp, Knife Edge Grip and Smooth Jaws, 43 Nm Torque, 22 kN Clamping Force, 15 mm Jaw Height, 29 mm Jaw Width
Price: Log in For Price
| Type | Knife Edge Grip Jaw Clamp | Length Minimum | 30 mm |
| Style | Knife Edge Grip and Smooth Jaws | Length Optimum | 32 mm |
| Torque | 43 Nm | Total Height | 17.5 mm |
| Clamp Center to Jaw Face Minimum | 16.3 mm | Total Width | 29 mm |
| Clamp Center to Jaw Face Optimum | 17.4 mm | Weight | 0.064 kgs |
| Clamp Center to Jaw Face Maximum | 18.5 mm | Socket Head Screw Size | M8 × 20 |
| Clamping Force | 22 kN | Hardness of Jaws HRC X | 38-42 |
| Jaw Height | 15 mm | Hardness of Jaws HRC Y | 48-52 |
| Jaw Width | 29 mm | Series | OK-Vise Clamps |
| Length Maximum | 34 mm |
Product Features
| Country of Origin | Finland |
