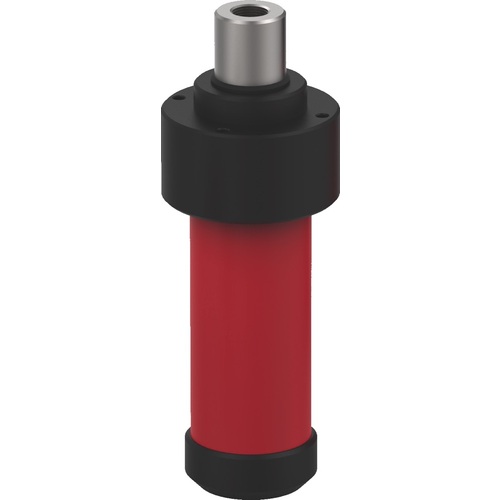

| Type | Pneumatic Power Cylinder | Vertical Clamp Stroke | 0.24 |
| Style | Power Cylinder with ISO Piston Rod End | Distance Body Side to Piston Rod Centerline | 3.505 |
| Capacity | 13490 lbs | Mounting Hole to Piston Rod Centerline | 2.955 |
| Clamping Force | 13490 lbs | Cylinder Width | 5.31 |
| Base Width | 5.8 | Model No | WK6000-30-6-1 |
| Length | 5.8 | Clamp Height | 14.37 |
| Height | 14.37 | Stroke | 1.18 |
| Width | 7.01 | Distance from Top to Clamp Port Center | 3.94 |
| Mount Diameter | 5.91 | Cylinder Rod Diameter | 2.56 |
| Overall Length | 5.8 | Cylinder Height | 14.37 |
| Overall Height | 14.37 | Distance from Base to Cylinder Rod Height | 14.37 |
| Overall Width | 7.01 | Cylinder Rod Recess | 1.57 |
| Bore Size | 4.92 | Temperature Range | 23°F-167°F |
| Port Size | G1/2 | Function | Two stage power cylinder |
| Dowel Size | 25mm | Series | Type WK |
| Hole Size | M10, 16mm Deep | Weight | 52.9 lbs |
Product Features
| Country of Origin | Germany |
Shipping Info
LocalField10
0
HAZCode
W
HazDescription
Weighted Item. Additional Costs Apply.
Package Weight
52.92
