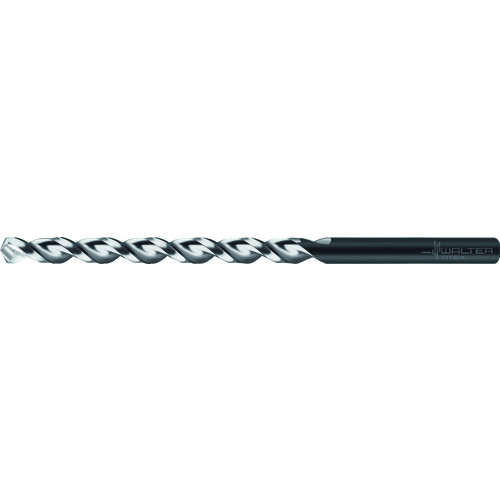

6.6mm Dia. × 148mm OAL 12xD HSS Deep Hole Drill A1522-6.6
A1522–6.6
| Drill Bit Size / Cutting Diameter (DC) | 6.6 mm | Helix Angle | CW|40 Degrees |
| Decimal Equivalent | 0.2598 | Length Group | 12xD |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.6 mm | Measurement Type | Metric |
| Angle | 130 Degrees | Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 148 mm |
| Cutting Depth | 86 mm | Shank Type | Round |
| Cutting Edge Material | HSS | Standard | DIN 340 |
| Flute Length | 97 mm | Series/List # | A1522 |
Product Features
| Family Description | A1522–6.6 | Country of Origin | Germany |
Shipping Info
Package Weight
0.298
