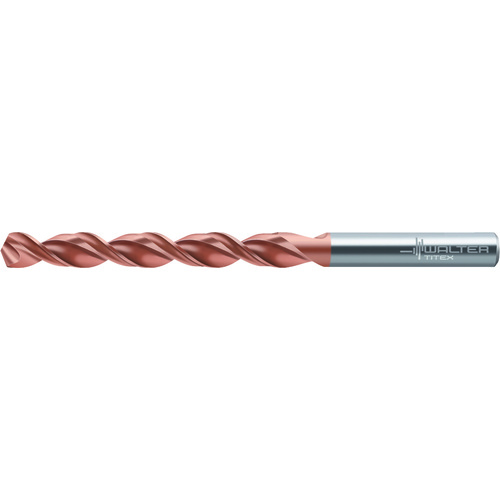

7.2mm Dia. × 109mm OAL 8xD HSS XPL Deep Hole Drill A1249XPL-7.2
A1249XPL–7.2
Price: Log in For Price
| Drill Bit Size / Cutting Diameter (DC) | 7.2 mm | Helix Angle | CW|40 Degrees |
| Decimal Equivalent | 0.2835 | Length Group | 8xD |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7.2 mm | Measurement Type | Metric |
| Angle | 130 Degrees | Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 109 mm |
| Cutting Depth | 57 mm | Shank Type | Round |
| Cutting Edge Material | HSS | Standard | DIN 338 |
| Flute Length | 69 mm | Series/List # | A1249XPL |
Product Features
| Family Description | A1249XPL–7.2 | Country of Origin | DE |
Shipping Info
Package Weight
.9999
