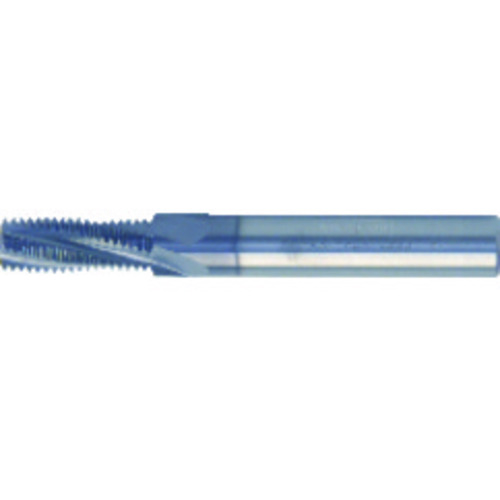

M4.5 x .75mm - Helical FL AlTiN Thread Mill - Metric Thread Series/List #5901

‹ ›

M4.5 x .75mm - Helical FL AlTiN Thread Mill - Metric Thread Series/List #5901

‎Thread Mill; M4.5 - 0.75 ; 1/8″ Shank Dia. × 2″ OAL ; Carbide ; AlTiN ; Series 5901

Item # MCT98626

UNSPSC: 23291800

Brand: Morse Cutting Tools

MFG#: 98626

UPC #: 01023745 | 68612598626 | 686125986261

Price: Log in For Price

Quantity Available

Virtual Catalog

Thread Size

M4.5

Flute Count (NOF)

Threads per Inch (TPI)

0.75

Coating

AlTiN

Connection Diameter Machine Side (DCONMS)

1/8″

Cutting Edge Material

Carbide

Cutting Diameter (DC)

0.12″

Usable Length (LU)

1/4″

Overall Length (OAL)

2″

Series/List #

5901

Product Features

Remarks

Solid Carbide Thread Mills• Reduced Tool Inventory. One Thread Mill Can Produce internal & external threads. left hand & right hand threads, different thread diameters of the same pitch and through hole & blind hole threads.• Requires Less Power. Produce coarse pitches and large diameters on lower H.P. machines.• Tough Threading Applications. Thread harder, difficult-to-machine & gummy materials that cause problems for taps.• Helical Flutes for reduced cutting forces, improved thread qualtiy & increased tool life.• Precision Threading. Control pitch diameter precisely via programming. Precision thread depth control & positional accuracy. Produce 100% thread heights. Produce full threads to within one pitch of a shoulder or blind hole bottom.• Easily Removed if Broken. No need for EDM burn-out.• 10% Micrograin Carbide offers higher cutting speeds, high rigidity, excellent hardness, wear resistance and heat resistance and long tool life.• ALTiN - Alumimum Titanium Nitride is an excellent all-around coating that is especially recommended for high thermal stress applications including dry machining, abrasive materials and difficult-to-machine materials. Benefits include higher cutting speeds and longer tool life.

Country of Origin

USA

Shipping Info

LocalField10

Package Length

3.12500

Package Width

.37500

Package Height

.37500

Package Weight

0.02
