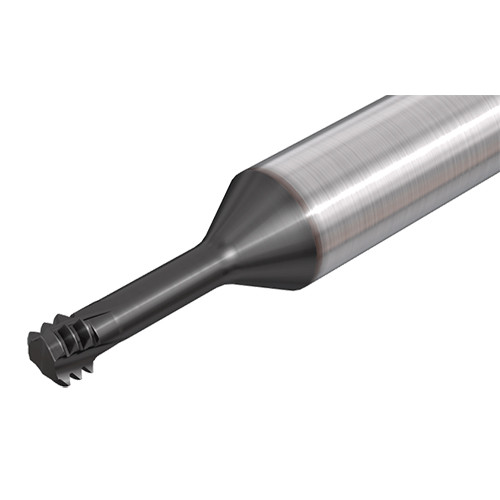

MTECS 08078C23 1.5ISO IC908
Small diameter, solid carbide internal ISO profile threading mills. Designed for high cutting speeds, short cycle time and low cutting forces. Short threading contact for accurate and parallel thread.
Price: Log in For Price
| Thread Size | M10 | Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 1.5 mm | Cutting Position | Internal |
| Thread Standard | THFT | | Usable Length (LU) | 23 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Series/List # | MTB |
| Cutting Diameter (DC) | 7.8 mm | Measurement Type | Metric |
| Functional Length (LF) | 39 mm | Grade | IC908 |
| Overall Length (OAL) | 64 mm | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Left Hand|Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | M60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Small diameter, solid carbide internal ISO profile threading mills. Designed for high cutting speeds, short cycle time and low cutting forces. Short threading contact for accurate and parallel thread. | Country of Origin | Israel |
Shipping Info
Package Weight
0.093
