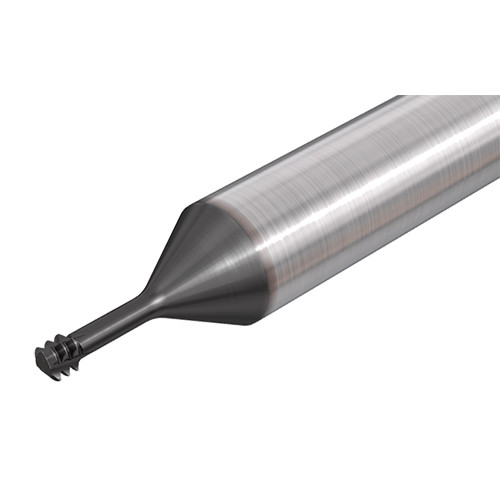

MTECS 03016C6 56UN IC908
Small diameter solid carbide UN profile threading mills. High cutting speeds, short cycle time, low cutting forces due to the short threading contact resulting in accurate and parallel thread.
Price: Log in For Price
| Thread Size | 2 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 0.454 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 56 | Cutting Position | Internal |
| Thread Standard | UNC |UNF |THFT | | Usable Length (LU) | 6.6 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Series/List # | MTB |
| Cutting Diameter (DC) | 1.65 mm | Measurement Type | Metric |
| Functional Length (LF) | 39 mm | Grade | IC908 |
| Overall Length (OAL) | 39 mm | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Left Hand|Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | Small diameter solid carbide UN profile threading mills. High cutting speeds, short cycle time, low cutting forces due to the short threading contact resulting in accurate and parallel thread. | Country of Origin | Israel |
Shipping Info
Package Weight
0.024
