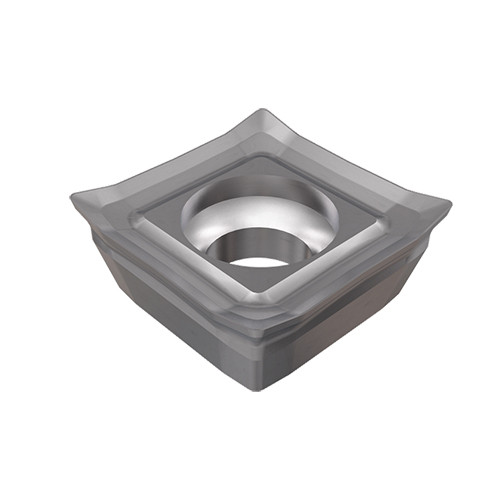

QPMR 100404PDN-HQ-M IC830
Super positive square milling inserts for machining aluminum, stainless steel and high temperature alloys (QUAD2000).
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Square |
| Application | | Facing | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |

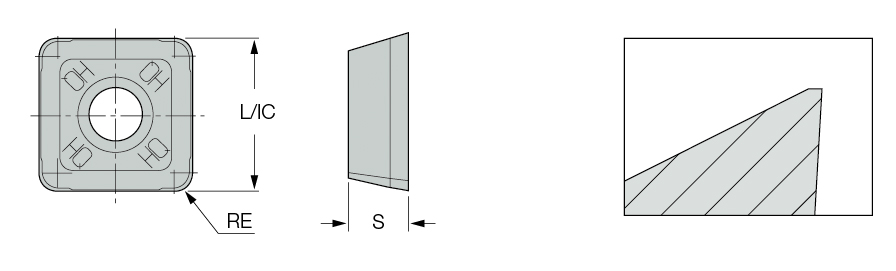

| Insert Length (INSL) | 0.407″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Insert Thickness (S) | 0.176″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 4 |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
Product Features
| Family Description | Super positive square milling inserts for machining aluminum, stainless steel and high temperature alloys (QUAD2000). | Country of Origin | Israel |
| Remarks | Performs 90° Milling limited to a .08 depth of cut |
Shipping Info
Package Weight
0.011
