TPK 43PDTR-42 IC250

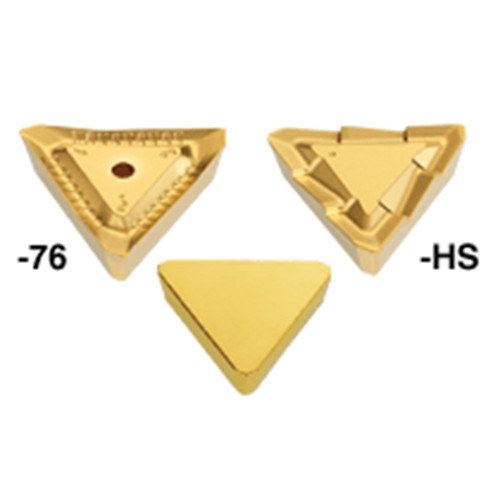

General use milling inserts. The -42 design has an improved tool life. The -HS has a serrated cutting edge for chip splitting and reduced chatter, the -76 has ribs along the cutting edge for reduced heat transfer in heavy machining.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Shouldering | Slotting | | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 0.866″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.187″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Coating | TiCN+TiN | Number of Cutting Edges | 3 |
| Grade | IC250 | Measurement Type | Inch |
| Shape | Triangle | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
Product Features
| Family Description | General use milling inserts. The -42 design has an improved tool life. The -HS has a serrated cutting edge for chip splitting and reduced chatter, the -76 has ribs along the cutting edge for reduced heat transfer in heavy machining. | Country of Origin | Israel |
Shipping Info
Package Weight
0.029
