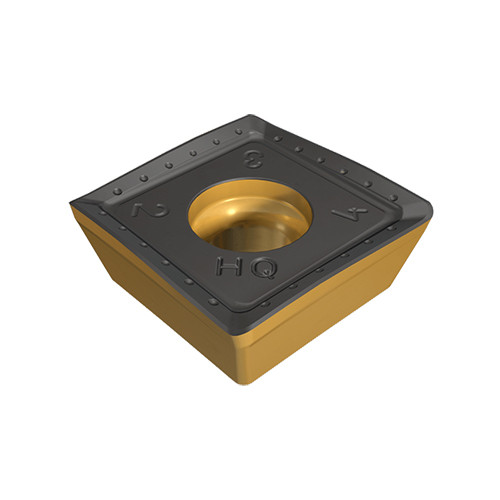

SDMT 1205PDR-HQ-MM IC328
General use inserts with four helical cutting edges for 90° shoulder milling.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Round |
| Application | | Countersinking | Facing | Plunging & Recessing | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Insert Length (INSL) | 0.502″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.197″ | Minimum Feed per Tooth (fz(min)) | 0.0027 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 4 |
| Coating | TiCN | Measurement Type | Inch |
| Grade | IC328 | Body Material | Carbide |
Product Features
| Family Description | General use inserts with four helical cutting edges for 90° shoulder milling. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
0.019
