P290 ACCT 1806PDR-HL IC808
Single-sided rectangular inserts with two .472 and .708″ straight cutting edges.
Price: Log in For Price

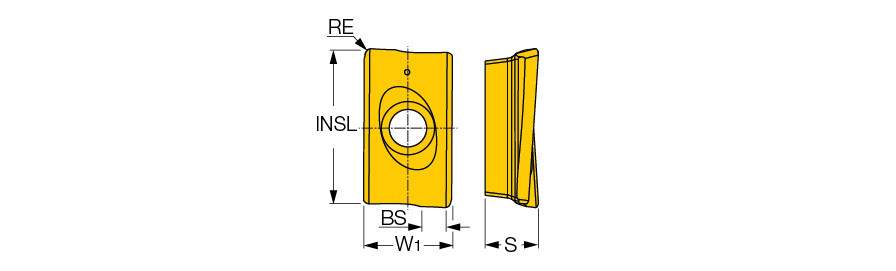

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | 85° Parallelogram |
| Application | | Facing | Profiling | Rampdown | Shouldering | | Maximum Feed per Tooth (fz(max)) | 0.0047 ″/tooth |
| Cutting Edge Length (L) | 0.764″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.764″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.709″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Width (W1) | 0.423″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.256″ | Cutting Edge Effective Length (LE) | 0.709″ |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Inch |
| Grade | IC808 | Body Material | Carbide |
Product Features
| Family Description | Single-sided rectangular inserts with two .472 and .708″ straight cutting edges. | Country of Origin | Israel |

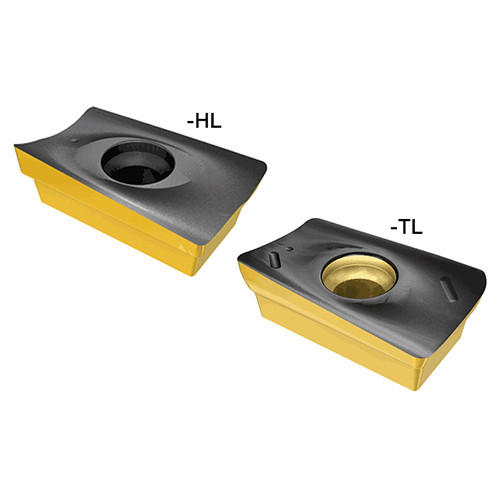

| Remarks | HL - For finishing applications (ae max=.040) HL-P - Polished rake, used for aluminum TL- Reinforced straight cutting edges, designed for rough and semi-finishmilling |
Shipping Info
Package Weight
0.031
