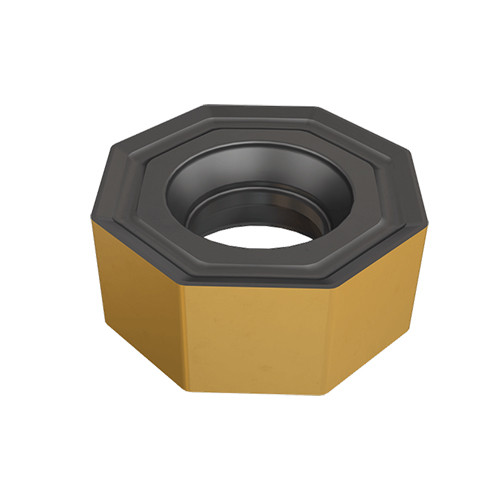

ONHU 050500-PL IC830
Octagonal double-sided inserts with 16 cutting edges (HELIDO 845 line).
Price: Log in For Price

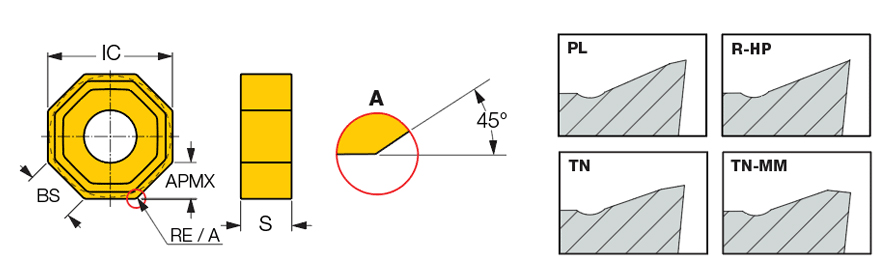

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Application | | Facing | Slanted Shoulder & Chamfer | | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.138″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.2″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Included Angle (EPSR) | 135 Degrees | Number of Cutting Edges | 16 |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
| Shape | 135° Octagon |
Product Features
| Family Description | Octagonal double-sided inserts with 16 cutting edges (HELIDO 845 line). | Country of Origin | Israel |
| Remarks | ONHU - Precision ground ONMU - Utility |
Shipping Info
Package Length
3.25000
Package Width
2.25000
Package Height
.50000
Package Weight
0.018
