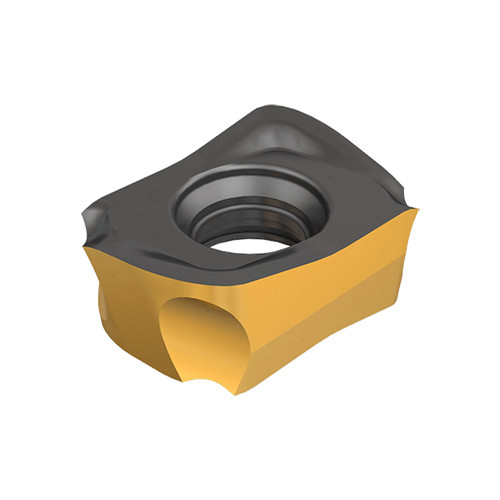

H490 ANKX 0904R12T-FF IC830
HELIDO 490 Line, double-sided rectangular inserts, with 4 helical cutting edges. Very strong construction, for fast feed milling at small depth of cut.
Price: Log in For Price

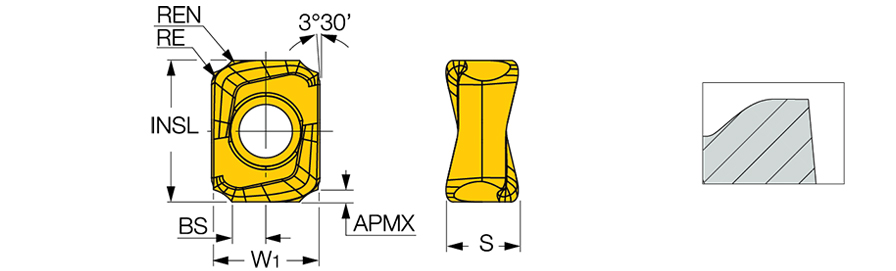

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | 85° Parallelogram |
| Application | | Facing | Fast Feed Milling | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.059 ″/tooth |
| Cutting Edge Length (L) | 0.335″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.335″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0394″ | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.028″ | Minimum Feed per Tooth (fz(min)) | 0.0197 ″/tooth |
| Insert Width (W1) | 0.244″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.169″ | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 |
Product Features
| Family Description | HELIDO 490 Line, double-sided rectangular inserts, with 4 helical cutting edges. Very strong construction, for fast feed milling at small depth of cut. | Country of Origin | Israel |

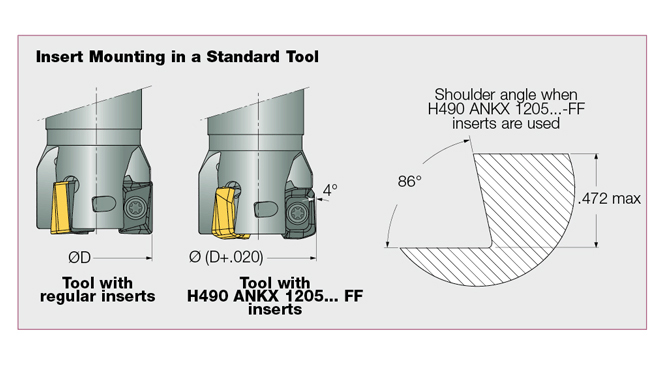

| Remarks | The cutting diameter of the tool is .005 larger than the nominal diameter when using this insert At D.O.C. larger than APMX, regular insert feed should be applied Enables ramping down at 1° maximum on 5/8 to 1.5 tool diameters |
Shipping Info
Package Weight
0.007
