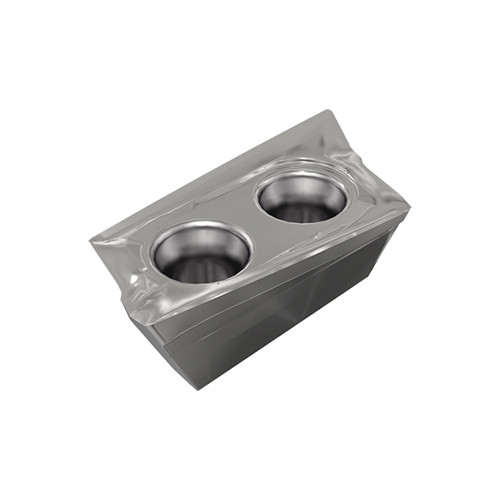

HP ADKT 190610PDTR IC928
HELIPLUS milling inserts with 19 mm cutting edge for general use.
Price: Log in For Price

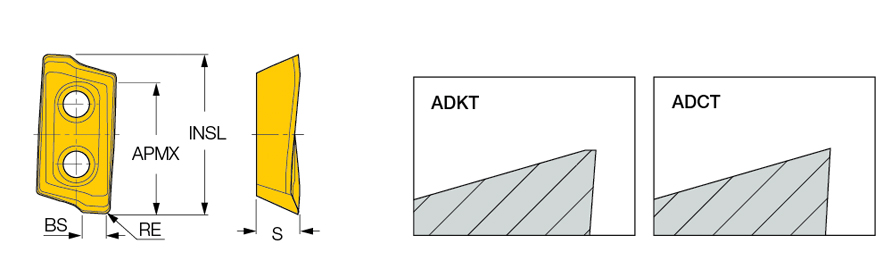

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | 85° Parallelogram |
| Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Cutting Edge Length (L) | 0.858″ | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 0.858″ | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.0394″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.713″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.27″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC928 |
Product Features
| Family Description | HELIPLUS milling inserts with 19 mm cutting edge for general use. | Country of Origin | Israel |
| Remarks | Insert with corner radii larger than 1.0 mm should not be used on the HP ADK-19 cutter. |
Shipping Info
LocalField10
0
Package Length
5.50000
Package Width
2.25000
Package Height
.62500
Package Weight
0.033
