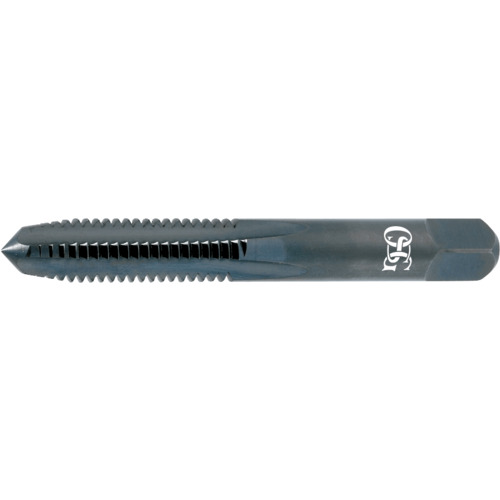

10-24 H3 4FL HSS Straight Flute Plug Tap-TiCN
Straight Flute Tap; #10 - 24 ; 2-3/8″ OAL ; 4 FL ; HSS ; TiCN ; H3 ; Series 102

Price: Log in For Price
| Thread Diameter Size (TDZ) | #10 | Tool Type | Hand Tap |
| Threads per Inch (TPI) | 24 | Chamfer | 4P-4.5P |
| Thread Standard | NC | Coating | TiCN |
| Overall Length (OAL) | 2-3/8″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 7/8″ | End Shape | Chamfer |
| Usable Length (LU) | 1.047″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Measurement Type | Wire Gauge |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 102 |
| Cutting Edge Material | HSS | Thread Size | #10 - 24 |
| Thread Tolerance Class (TCTR) | H3 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
2.95000
Package Width
.45000
Package Height
.40000
Package Weight
.0200
