MTE D0.375-1-W0.75-12
Indexable threading endmills with Weldon shank and coolant holes.
Price: Log in For Price

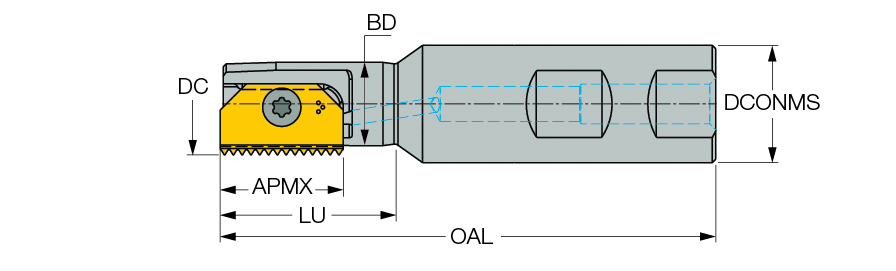

| Cutting Diameter (DC) | 3/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | External Thread Milling | Internal Thread Milling | |
| Depth of Cut Maximum (APMX) | 0.472″ | Cutting Position | External |
| Overall Length (OAL) | 3.35″ | Tool Type | Indexable thread mills |
| Flute Count (NOF) | 1 | Measurement Type | Inch |
| Usable Length (LU) | 0.6″ | Grade | 3102179 |

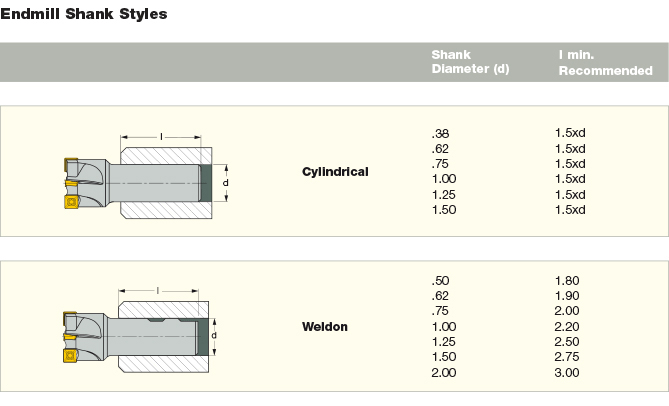

| Shank Type | Weldon | Connection Code Machine Side (CCMS) | Weldon |
| Body Material | Steel | Body Diameter (BD) | 0.3″ |
Product Features
| Family Description | Indexable threading endmills with Weldon shank and coolant holes. | Country of Origin | Israel |
| Remarks | Tool cutting diameter should not exceed 2/3 of thread bore diameter All endmills are equipped with a bore for internal coolant |
Shipping Info
Package Weight
0.461
