MTE D14.5-1-W20-14

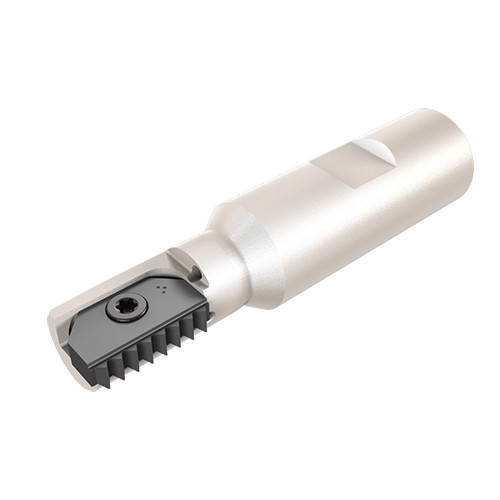

Indexable threading endmills with Weldon shank and coolant holes.
Price: Log in For Price

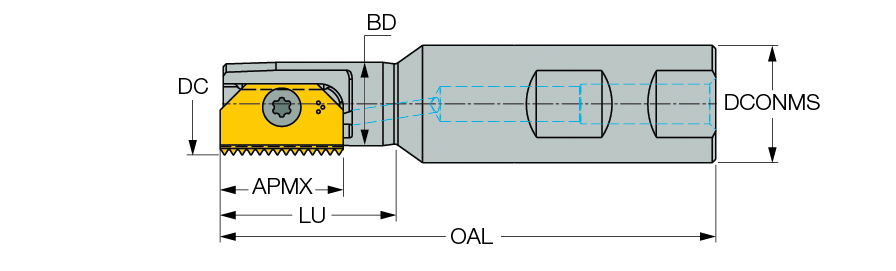

| Cutting Diameter (DC) | 14.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Depth of Cut Maximum (APMX) | 14 mm | Cutting Position | External |
| Overall Length (OAL) | 85 mm | Tool Type | Indexable thread mills |
| Flute Count (NOF) | 1 | Measurement Type | Metric |
| Usable Length (LU) | 27.1 mm | Grade | 3102179 |
| Shank Type | Weldon | Connection Code Machine Side (CCMS) | Weldon |
| Body Material | Steel | Body Diameter (BD) | 10.8 mm |
Product Features
| Family Description | Indexable threading endmills with Weldon shank and coolant holes. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info. All endmills are equipped with a bore for internal coolant Tool cutting diameter should not exceed 2/3 of thread bore diameter |
Shipping Info
Package Weight
0.465
