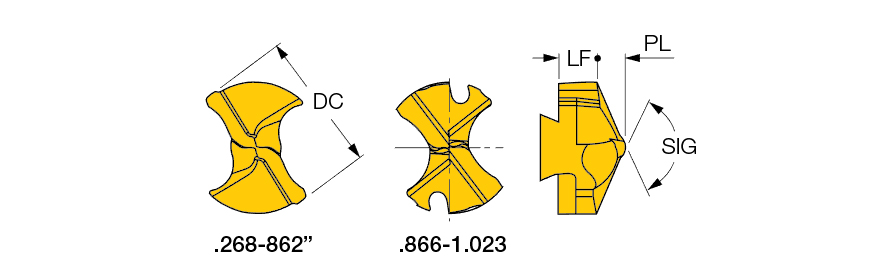

| Cutting Diameter (DC) | 0.429″ | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | Drilling | | Insert Thickness (S) | 0.209″ |
| Grade | IC908 | Point Length (PL) | 0.07795″ |
| Tool Type | Drilling Heads | Point Angle (SIG) | 140 Degrees |
| Insert Seat Size Code (SSC) | 10.0 | Coating | TiAlN |
| Functional Length (LF) | 0.131″ | Body Material | Carbide |
Product Features
| Family Description | CHAMDRILL general use DCM drill heads | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
0.005
Related Documentation
Related Items
