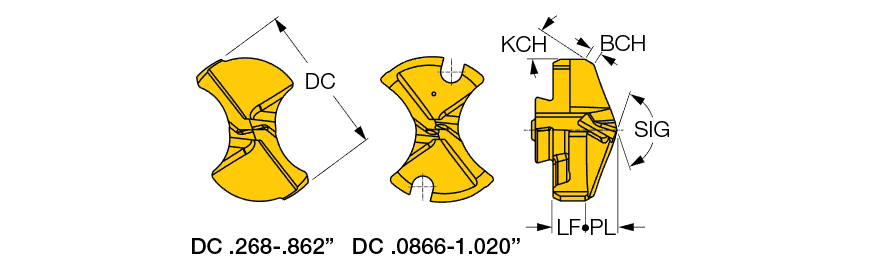

| Cutting Diameter (DC) | 0.906″ | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Thickness (S) | 0.409″ |
| Application | | Drilling | | Point Length (PL) | 0.16496″ |
| Grade | IC908 | Point Angle (SIG) | 140 Degrees |
| Tool Type | Drilling Heads | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 23.0 | Chamfer Angle | 30 Degrees |
| Functional Length (LF) | 0.244″ | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features

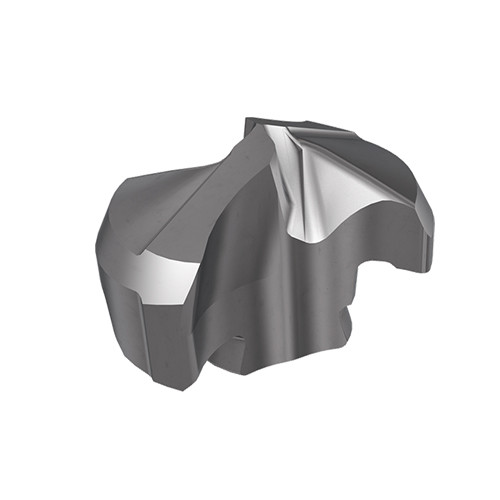

| Family Description | CHAMDRILL DCM drill heads for cast iron | Country of Origin | Israel |
Shipping Info
Package Weight
0.061
