EPND-C10 06-19C06F65 IC02

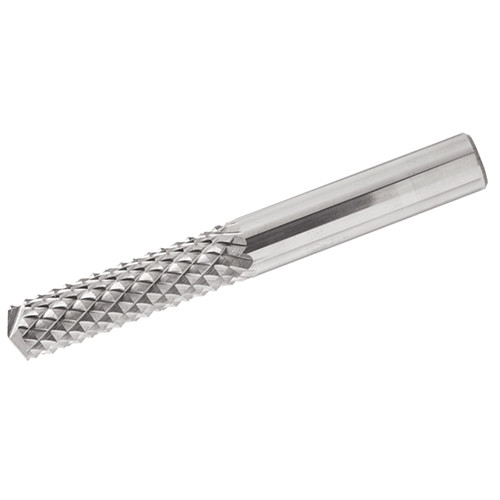

Solid carbide endmills with special cutting edges also for drill mill operation, for machining of different kind of composite materials. Enables application of high feed and speed due to excellent chip and heat disposal.
Price: Log in For Price

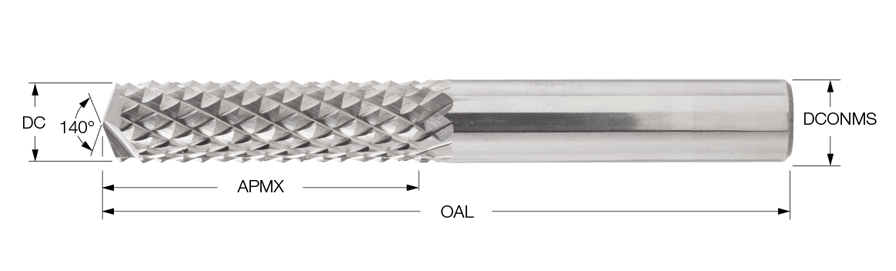

| Cutting Diameter (DC) | 6 mm | Grade | IC02 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Body Half Taper Angle (BHTA) | 0 Degrees |
| Depth of Cut Maximum (APMX) | 19 mm | Tool Type | Solid Carbide Roughers |
| Overall Length (OAL) | 65 mm | Maximum Feed per Tooth (fz(max)) | 0.08 mm/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.02 mm/tooth |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 10 | Body Material | Carbide |
| Shank Type | Round | Style | Solid Carbide Roughers |
| End Shape | Square | Measurement Type | Metric |
| Usable Length (LU) | 19 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Diameter Tolerance | e8 |
| Application | | Drill Mill | Edging | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Solid carbide endmills with special cutting edges also for drill mill operation, for machining of different kind of composite materials. Enables application of high feed and speed due to excellent chip and heat disposal. | Country of Origin | Israel |
Shipping Info
Package Weight
0.062
