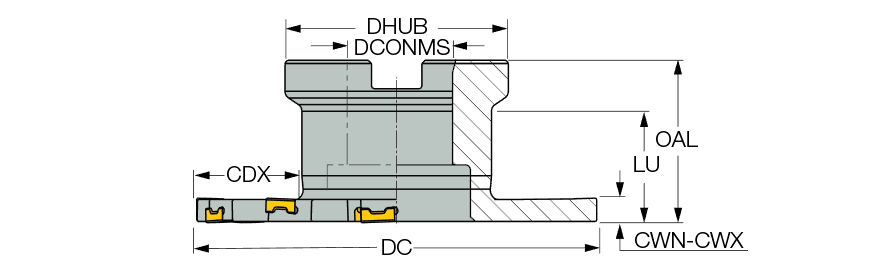

| Cutting Diameter (DC) | 100 mm | Flute Count (NOF) | 12 |
| Cutting Item Count (CICT) | 12 | Overall Length (OAL) | 40 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 | Master Insert Identification (MIID) | LNET 083504-TN-N |
| Cutting Depth Maximum (CDX) | 26 mm | Application | | Side Slotting | Slitting | Slotting | |
| Hub Diameter (DHUB) | 55 mm | Arbor Style | B |
| Cutting Width Maximum (CWX) | 6.5 mm | Tool Type | Double-sided slotting cutters |
| Cutting Width Minimum (CWN) | 6 mm | Measurement Type | Metric |
| Usable Length (LU) | 28.5 mm | Body Material | Steel |
Product Features
| Family Description | Full slot cutters carrying LNET 08 tangentially mounted inserts. A very effective solution for parting quality parts such as bearing caps at high cutting speeds. | Country of Origin | Israel |
Shipping Info
Package Weight
1.642
