FDN D100-0608-27R-CALN12

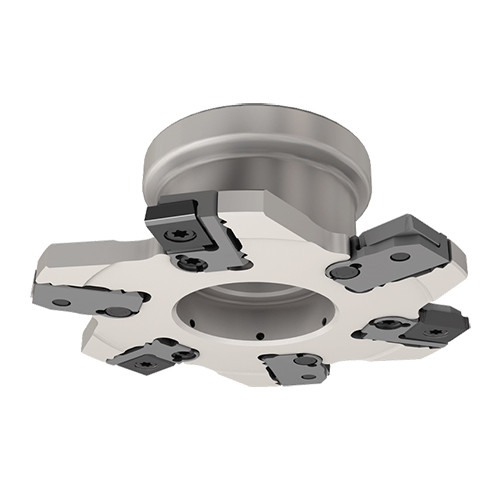

Full slot, adjustable slotting cutters with cartridges using tangentially clamped LNET 12 inserts, 6.0-10.5 mm width range. The narrow and accurate slitting capability is used for applications like slitting bearing caps.
Price: Log in For Price

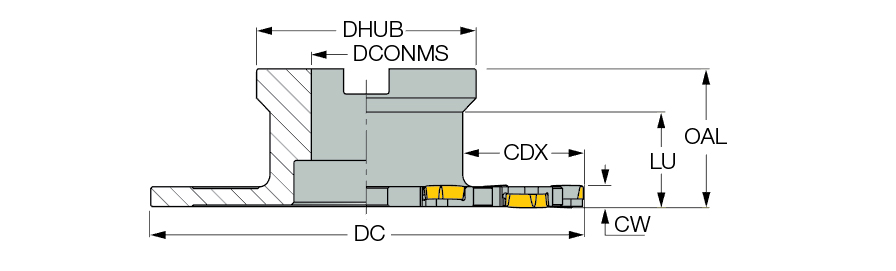

| Cutting Diameter (DC) | 100 mm | Usable Length (LU) | 28.4 mm |
| Cutting Item Count (CICT) | 6 | Flute Count (NOF) | 6 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 | Master Insert Identification (MIID) | LNET 123504-TN |
| Cutting Depth Maximum (CDX) | 26 mm | Application | | Bottom Shouldering | Shouldering | Side Slotting | Slotting | |
| Hub Diameter (DHUB) | 55 mm | Tool Type | Double-sided slotting cutters |
| Cutting Width Maximum (CWX) | 8.2 mm | Measurement Type | Metric |
| Cutting Width Minimum (CWN) | 6 mm | Body Material | Steel |
Product Features
| Family Description | Full slot, adjustable slotting cutters with cartridges using tangentially clamped LNET 12 inserts, 6.0-10.5 mm width range. The narrow and accurate slitting capability is used for applications like slitting bearing caps. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. For cartridges, click on More Info. |
Shipping Info
Package Weight
2.048
