| Cutting Diameter (DC) | 200 mm | Master Insert Identification (MIID) | GSFN 3 |
| Cutting Item Count (CICT) | 14 | Application | | Side Slotting | Slitting | Slotting | T Slotting | |
| Peripheral Effective Cutting Edge Count (ZEFP) | 14 | Rotational Speed Maximum (RPMX) | 400 Rev/min |
| Cutting Depth Maximum (CDX) | 59 mm | Tool Type | Slitting cutters |
| Hub Diameter (DHUB) | 80 mm | Measurement Type | Metric |
| Hub Thickness (THUB) | 2.4 mm | Body Material | Steel |
| Cutting Width Maximum (CWX) | 3.54 mm | Connection Code Machine Side (CCMS) | Disk type |
| Cutting Width Minimum (CWN) | 2.7 mm |
Product Features
| Family Description | Slitting cutters carrying SELF-GRIP inserts | Country of Origin | Israel |

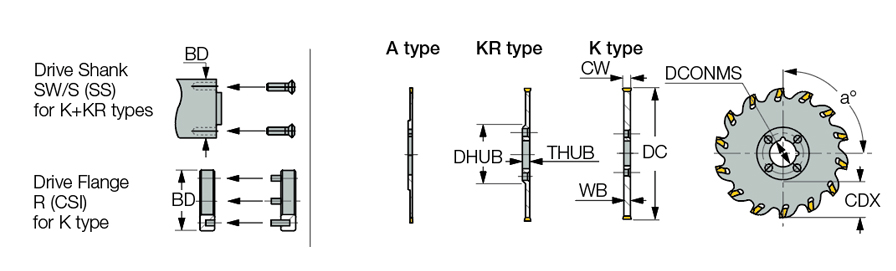

| Remarks | Only the K type cutters feature 4 driving holes around the central hole; can be driven by the R drive shanks Refer to SW/S drive shanks and R driving flange set. |
Shipping Info
Package Weight
1.918
