SDN D4.0-0.281-10-LN12

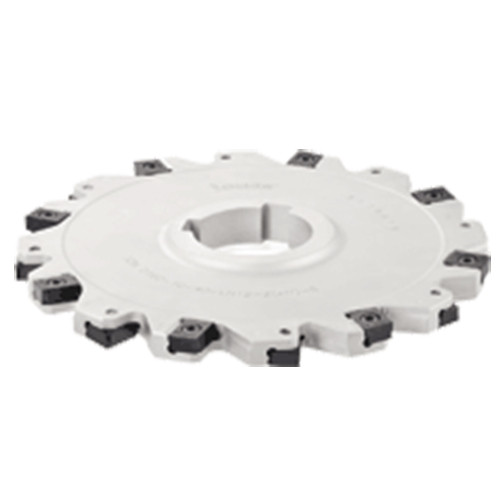

Full slot disk type slotting cutters carrying LNET 12 tangentially mounted inserts. Narrow slots save workpiece material. A very effective solution for parting at high speeds quality parts such as bearing caps.
Price: Log in For Price

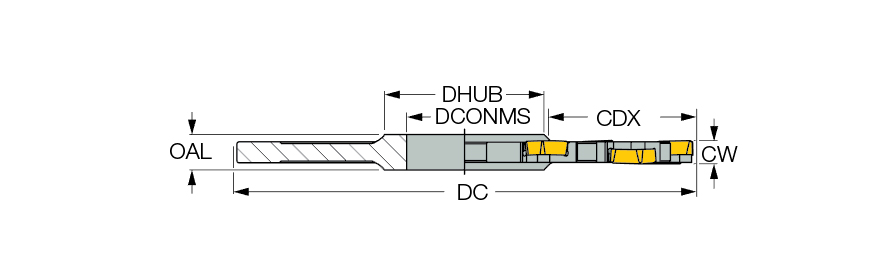

| Cutting Diameter (DC) | 4″ | Overall Length (OAL) | 3/8″ |
| Cutting Item Count (CICT) | 10 | Master Insert Identification (MIID) | LNET 124808-TN |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 | Application | | Bottom Shouldering | Side Slotting | Slotting | |
| Cutting Depth Maximum (CDX) | 1.06″ | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 1-3/4″ | Measurement Type | Inch |
| Cutting Width Maximum (CWX) | 0.34″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.281″ | Connection Code Machine Side (CCMS) | Disk type |
| Flute Count (NOF) | 10 |
Product Features
| Family Description | Full slot disk type slotting cutters carrying LNET 12 tangentially mounted inserts. Narrow slots save workpiece material. A very effective solution for parting at high speeds quality parts such as bearing caps. | Country of Origin | Israel |

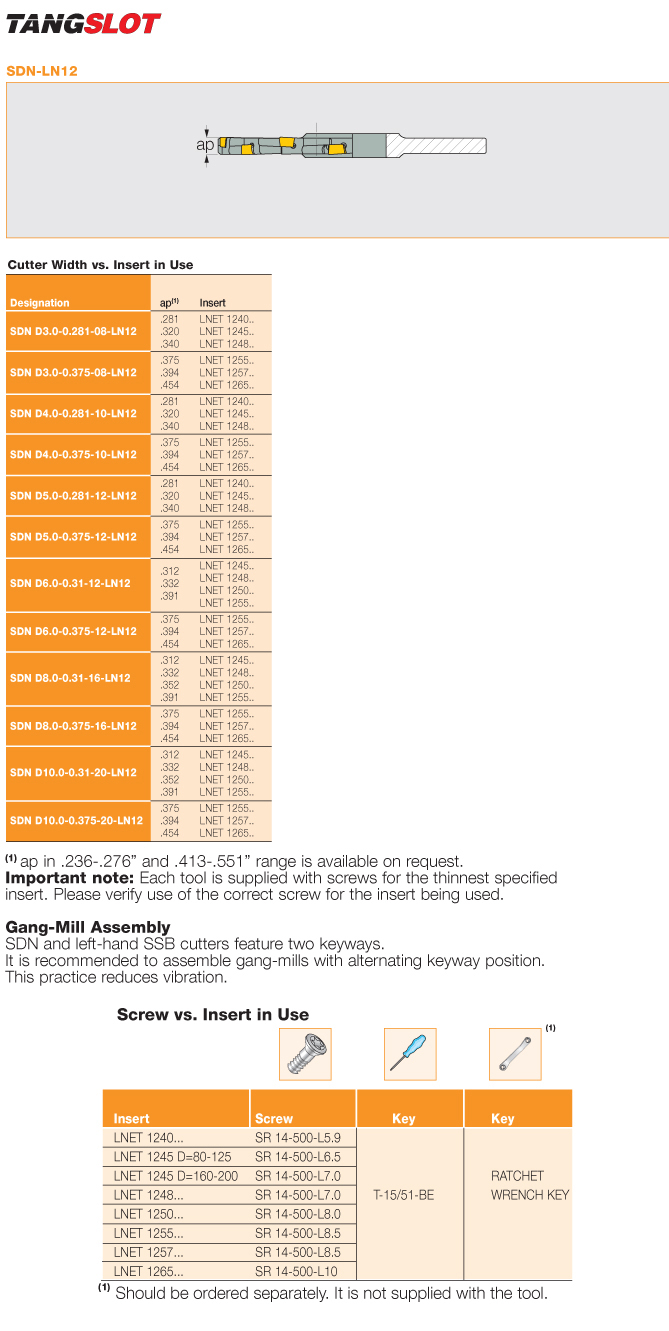

| Remarks | Each tool is supplied with screws for the thinnest specified insert; verify use of the correct screw for the insert being used For more than one insert option, slot width depends on the selected insert width Gang-mill assembly SDN and left-hand SSB cutters feature two keyways To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position. For user guide, click on More Info |
Shipping Info
LocalField10
0
Package Weight
1.432
