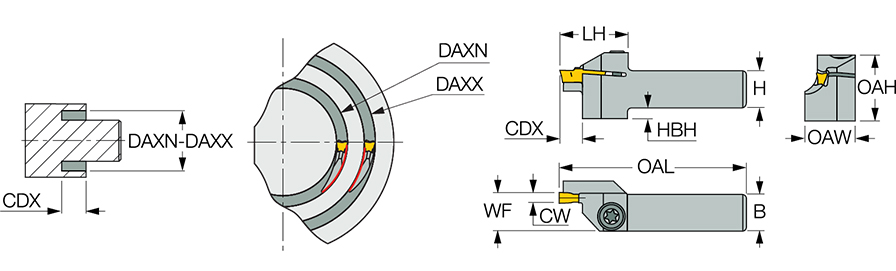

| Shank Width (B) | 1″ | Axial Groove Outside Diameter Minimum (DAXN) | 0.63″ |
| Shank Height (H) | 1″ | Overall Length (OAL) | 5″ |
| Cutting Depth Maximum (CDX) | 0.236″ | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Cutting Width (CW) | 0.118″ | Head Length (LH) | 3/4″ |
| Cutting Width Maximum (CWX) | 0.126″ | Tool Type | Face Turning & grooving Tools |
| Cutting Width Minimum (CWN) | 0.118″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Functional Width (WF) | 1″ |
| Axial Groove Outside Diameter Maximum (DAXX) | 0.98″ | Measurement Type | Inch |
Product Features

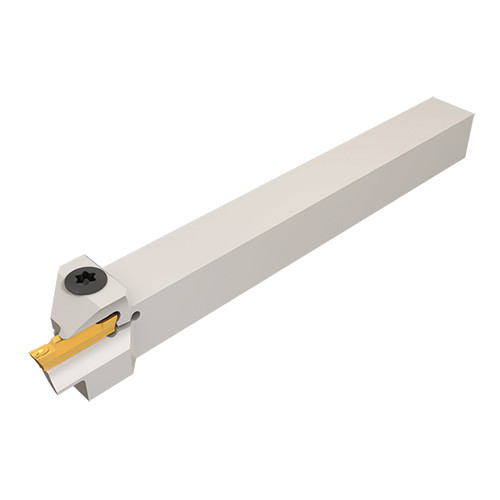

| Family Description | Integral holders for face grooving and turning | Country of Origin | Israel |
| Remarks | For insert clamping instructions and for widening limitations, click on More Info HGN & GRIP inserts can be used only with right-hand toolholders, HGPL inserts only with left-hand toolholders |
Shipping Info
LocalField10
0
Package Weight
1.499
Related Documentation

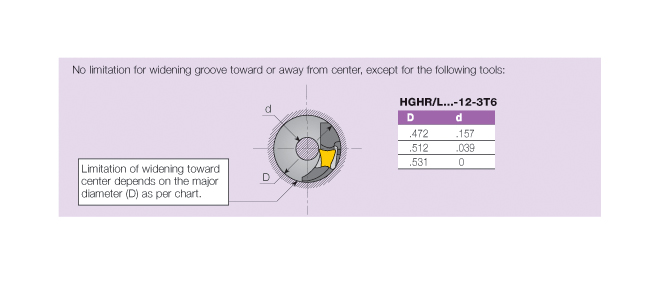

No limitation for widening groove toward or away from center,except for the following tools.
