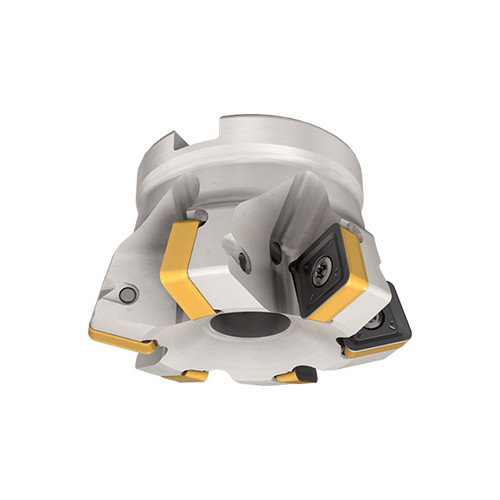

FFQ4 D100-07-32-17
Fast feed face mills carrying single-sided square Inserts with 4 cutting edges.
Price: Log in For Price

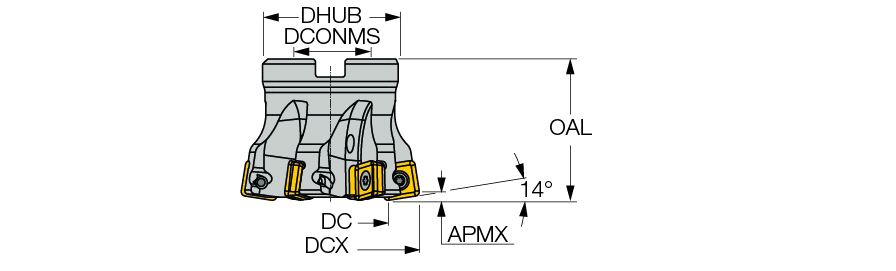

| Cutting Diameter (DC/DCX) | 100 mm | Arbor Style | A |
| Cutting Diameter (DC) | 70.8 mm | Master Insert Identification (MIID) | FFQ4 SOMT 170625T |
| Cutting Diameter Maximum (DCX) | 100 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 3 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Overall Length (OAL) | 63 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 78 mm |
Product Features
| Family Description | Fast feed face mills carrying single-sided square Inserts with 4 cutting edges. | Country of Origin | Israel |

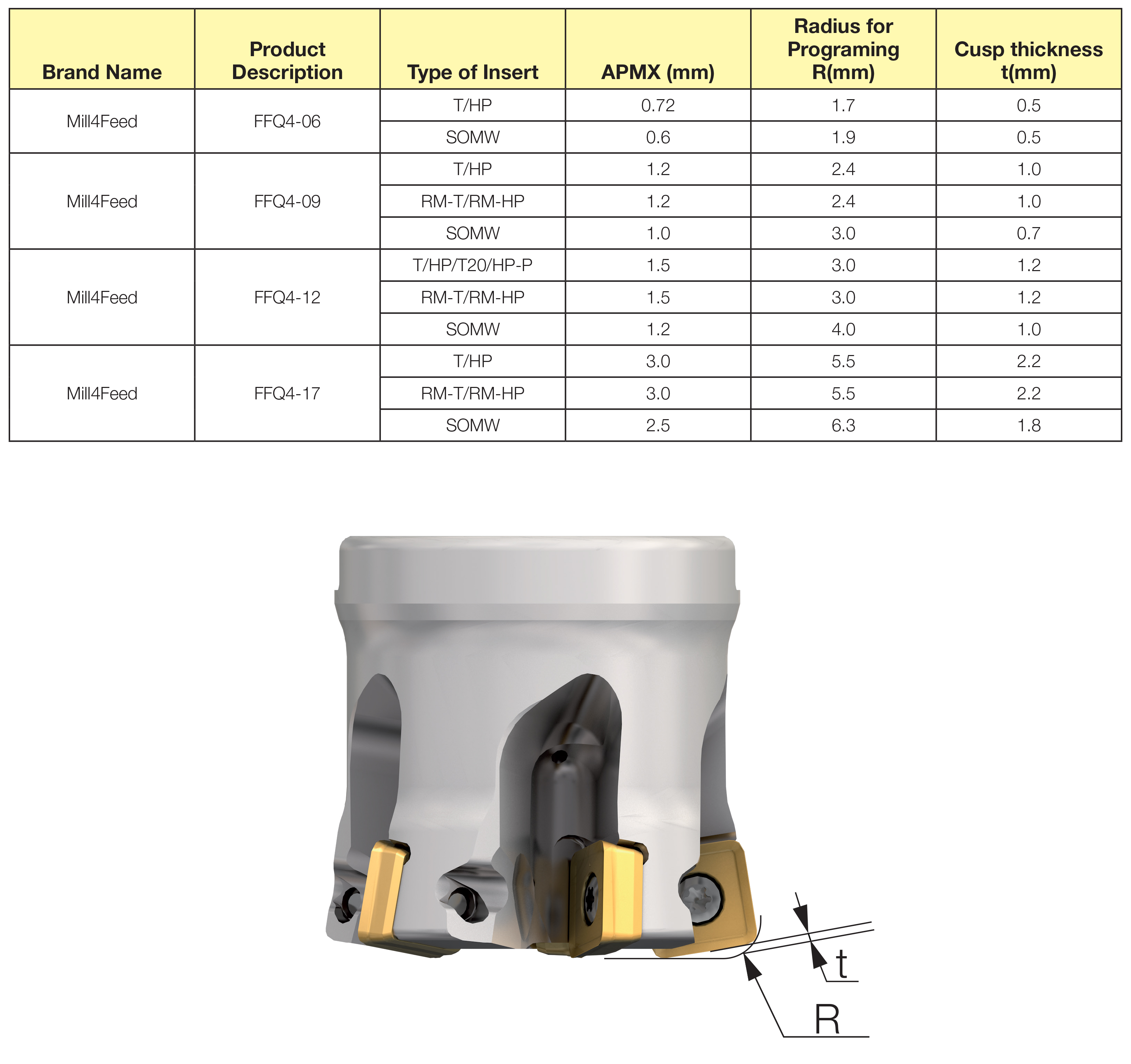

| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Radius for programming: for insert SOMT 5.5 mm, for insert SOMW 6.4 mm When mounting insert SOMW, APMX=2.5 mm For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% For cutting conditions click on More info |
Shipping Info
Package Weight
4.354
