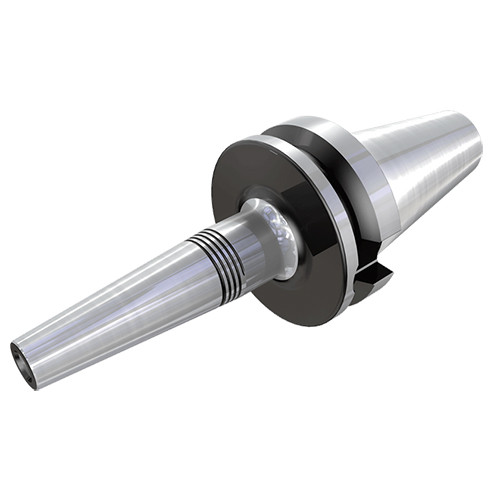

BT40 SRK 12X85
Shrink Fit Holder ; 12 mm Hole Dia. ; 40 mm Shank Dia. ; 177.4 mm OAL ; Series SHRINK
Price: Log in For Price

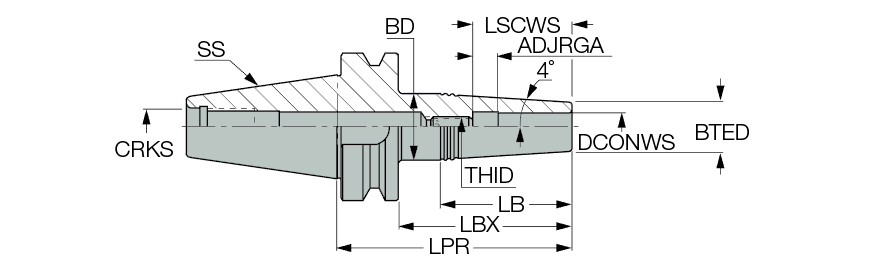

| Connection Diameter Machine Side (DCONMS) | 40 mm | Overall Length (OAL) | 177.4 mm |
| Connection Diameter Workpiece Side (DCONWS) | 12 mm | Shank Standard | BT |
| Shank Size (SS) | 40 | Clamping Length Workpiece Side (LSCWS) | 42 mm |
| Body Length (LB) | 56.6 mm | Series/List # | SHRINK |
| Body Diameter (BD) | 28 mm | Measurement Type | Metric |
| Body Taper End Diameter (BTED) | 20 mm | Tool Type | BT |
| Protruding Length (LPR) | 112 mm | Body Material | Steel |
| Body Length Maximum (LBX) | 85 mm | Connection Code Machine Side (CCMS) | BT |
Product Features
| Family Description | Thermal shrink chucks with BT MAS 403 form AD taper shanks, for carbide tools. | Country of Origin | Israel |
| Remarks | For shrink units information, Click on More Info. Preset screw without coolant hole For through tool coolant, preset screw must be removed |
Shipping Info
LocalField10
0
Package Weight
2.844
