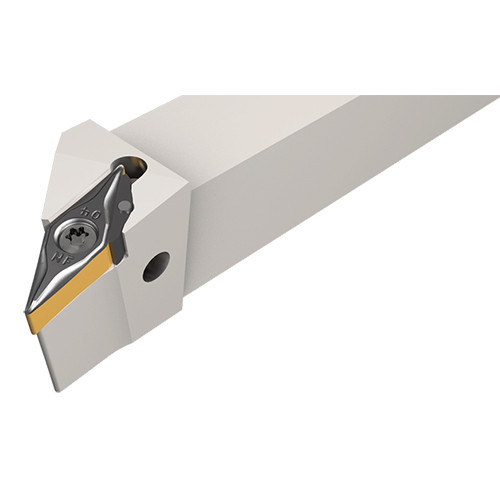

SVJNL 1616H-12F
Screw lock tools with a wedge for high rigidity, carrying 35° negative inserts for profiling applications.
Price: Log in For Price

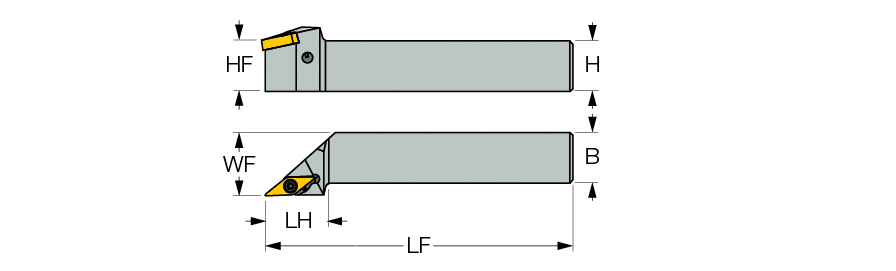

| Shank Height (H) | 16 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 16 mm | Rake Angle Radial (GAMF) | -12 Degrees |
| Functional Length (LF) | 100 mm | Body Material | Steel |
| Head Length (LH) | 25 mm | Cutting Position | External |
| Functional Width (WF) | 20 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 7.15 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | VNMG 12T3 | Insert Style | 100mm |
| Application | | Ext. 35° Diamond 93° Approach | |
Product Features
| Family Description | Screw lock tools with a wedge for high rigidity, carrying 35° negative inserts for profiling applications. | Country of Origin | Israel |
| Remarks | Repeatability: for VNMG is ±0.06 mm, for VNGG is ±0.02 mm |
Shipping Info
Package Weight
0.472
