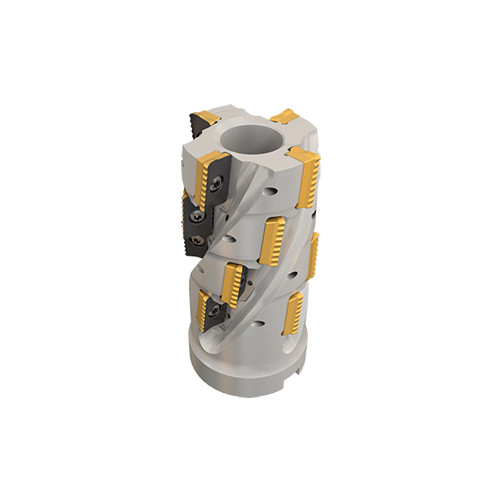

P290 SM D4.-6-1.4-1.50-18
Extended flute shell mills carrying .472 and .708″ long edged inserts.
Price: Log in For Price

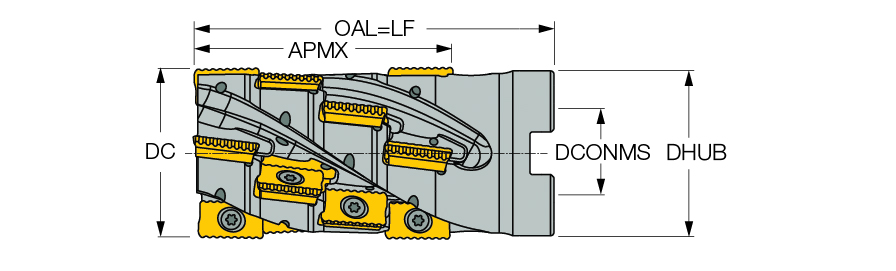

| Application | | Rampdown | Shouldering | | Number of Teeth | 16 |
| Cutting Item Count (CICT) | 12 | Master Insert Identification (MIID) | P290 ACKT 1806PDR-FW |
| Depth of Cut Maximum (APMX) | 1.4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 4″ | Arbor Style | A |
| Connection Diameter Machine Side (DCONMS) | 3.346″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Overall Length (OAL) | 2.755″ | Body Material | Steel |
| Cutting Length | 1.4″ | Tool Type | 90° Extended flute shell mill |
Product Features
| Family Description | Extended flute shell mills carrying .472 and .708″ long edged inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
6.442
