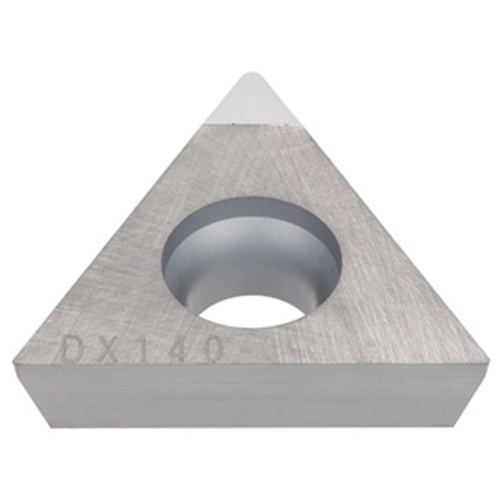

TPGW 21.50.5 DIA DX140
Positive 11deg relief ang., G class, triangular PCD insert
Price: Log in For Price
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Min D.O.C. | 0.0019″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0394″ |
| Corner Radius (RE) | 0.008″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.433″ | Max. Turning Feed (ft(max)) | 0.0078 ″/rev |
| Insert Thickness (S) | 0.094″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCD | Chip Breaker Type | FT-DIA |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | DX140 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.11″ | Cutting Edge Effective Length (LE) | 0.094″ |
| Tool Type | Turn Ultra hard Inserts |
Product Features
| Family Description | Positive 11deg relief ang., G class, triangular PCD insert | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.026
