MTECS06054D200.5ISO AH725

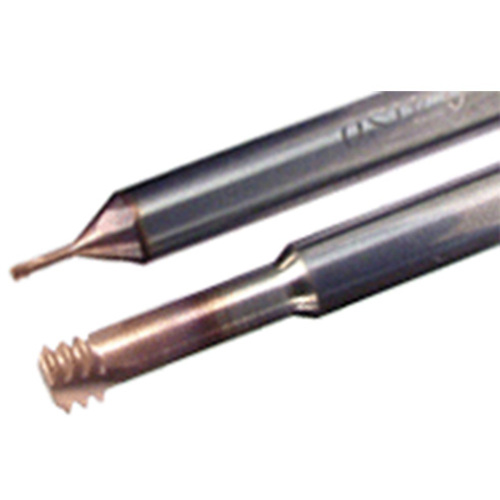

Small diameter, solid carbide internal ISO profile threading mills. Designed for high cutting speeds, short cycle time and low cutting forces. Short threading contact for accurate and parallel thread.
Price: Log in For Price

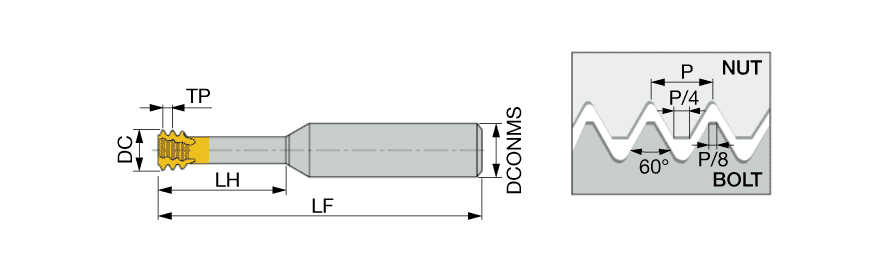

| Connection Diameter Machine Side (DCONMS) | 0.236″ | Threads per Inch Minimum (TPIN) | 50.8 |
| Cutting Diameter (DC) | 0.2106″ | Threads per Inch Maximum (TPIX) | 50.8 |
| Functional Length (LF) | 2.283″ | Cutting Edge Material | Carbide |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Coating | TiAlN | Grade | AH725 |
| Application | | Int. Thread Milling | | Tool Type | Solid carbide thread mills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Body Material | Carbide |
Product Features
| Family Description | Small diameter, solid carbide internal ISO profile threading mills. Designed for high cutting speeds, short cycle time and low cutting forces. Short threading contact for accurate and parallel thread. | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.000
