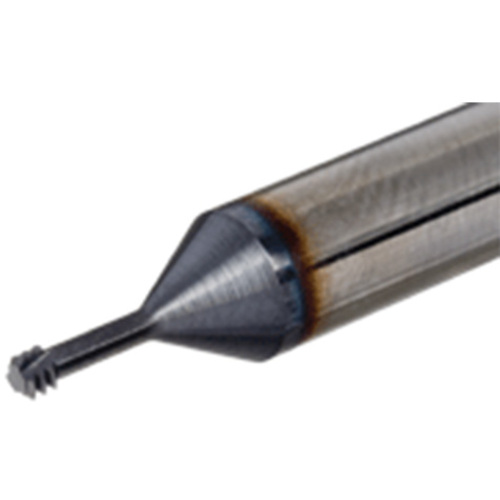

MTECSH06024C740UN AH750
Small diameter short left-hand (CNC code M04) solid carbide UN profile threading endmills. Used for hardened steel. High cutting speeds, low cutting forces due to the short threading contact resulting in accurate and parallel thread.
Price: Log in For Price

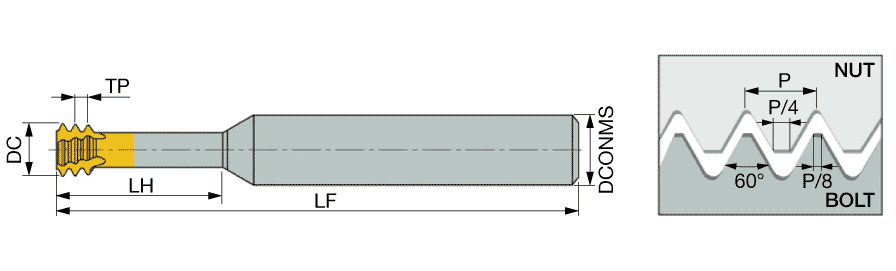

| Connection Diameter Machine Side (DCONMS) | 0.236″ | Threads per Inch Minimum (TPIN) | 40 |
| Cutting Diameter (DC) | 0.0964″ | Threads per Inch Maximum (TPIX) | 40 |
| Functional Length (LF) | 2.283″ | Cutting Edge Material | Carbide |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Coating | TiAlN | Grade | AH750 |
| Application | | Int. Thread Milling | | Tool Type | Solid carbide thread mills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Body Material | Carbide |
Product Features
| Family Description | Small diameter short left-hand (CNC code M04) solid carbide UN profile threading endmills. Used for hardened steel. High cutting speeds, low cutting forces due to the short threading contact resulting in accurate and parallel thread. | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.000
Related Documentation
