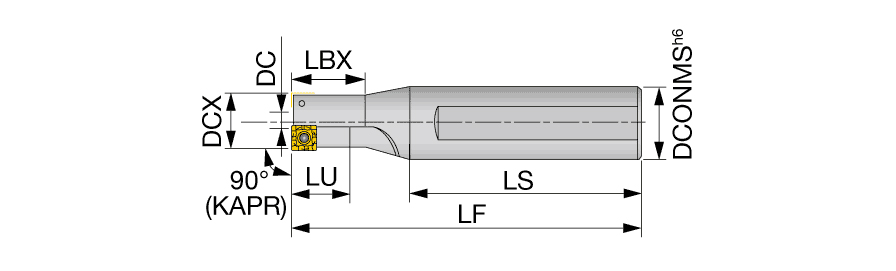

| Cutting Diameter (DC/DCX) | 14 mm | Head Length (LH) | 37 mm |
| Cutting Diameter (DC) | 14 mm | Functional Length (LF) | 117 mm |
| Cutting Item Count (CICT) | 1 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 5 mm | Tool Cutting Edge Angle (KAPR) | 91 Degrees |
| Overall Length (OAL) | 117 mm | Measurement Type | Metric |
| Application | | Multi Functional tools | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Shank Length (LS) | 80 mm |
| Master Insert Identification (MIID) | SPMP831-CG | Cutting Diameter Maximum (DCX) | 14 mm |
Product Features

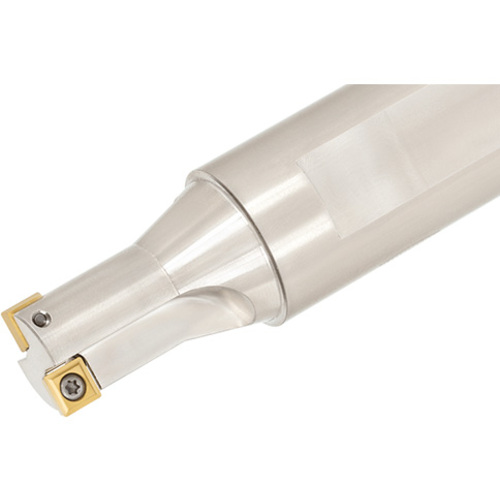

| Family Description | Indexable counter boring endmill monoblock type | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.884
