| Applicable Material | | Steel | Stainless Steel | | Grade | NS740 |
| Application | | Face Milling | | Maximum Feed per Tooth (fz(max)) | 0.0098 in/tooth |

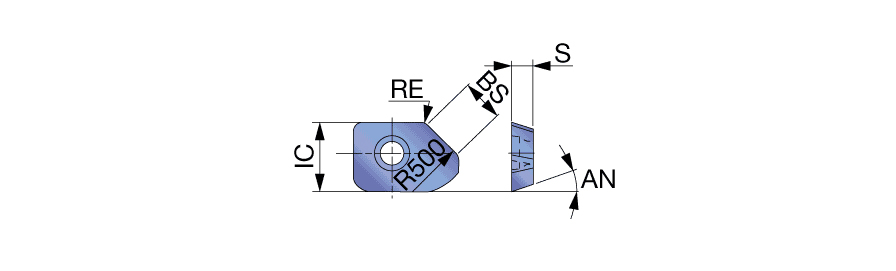

| Corner Radius (RE) | 0.059″ | Cutting Edge Material | Cermet |
| Depth of Cut Maximum (APMX) | 0.039″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.756″ | Minimum Feed per Tooth (fz(min)) | 0.004 in/tooth |
| Inscribed Circle Diameter (IC) | 0.504″ | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 0.157″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.307″ | Body Material | Carbide |
| Coating | Uncoated |
Product Features
| Family Description | Wiper insert for finishing of steel and cast iron. | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.150
