A16Q-SDXXL07-D200

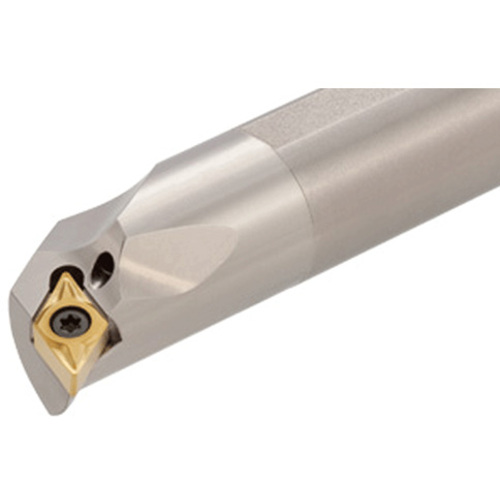

Screw-on boring bar for 55 deg rhombic insert with 4 edges
Price: Log in For Price

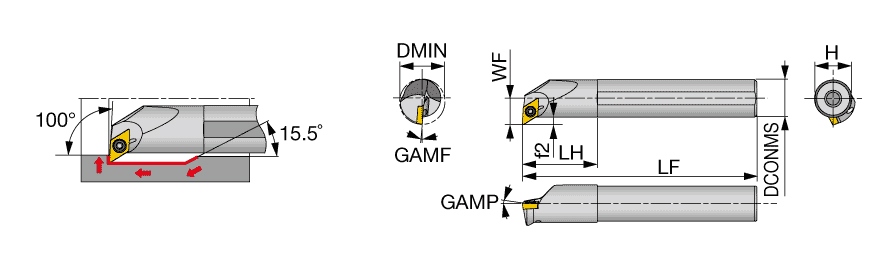

| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 180 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 32 mm | Rake Angle Axial (GAMP) | -13 Degrees |
| Shank Height (H) | 15 mm | Rake Angle Radial (GAMF) | -13 Degrees |
| Functional Width (WF) | 10.6 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | DXGU070304R | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 20 mm | Measurement Type | Metric |
Product Features
| Family Description | Screw-on boring bar for 55 deg rhombic insert with 4 edges | Country of Origin | JAPAN |
| Remarks | The right hand insert (R) is used for the left hand toolholders (SDXXL07 D**), and the left hand insert (L) is used for the right hand toolholders (SDXXR07 D**). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
LocalField10
0
Package Weight
0.617
