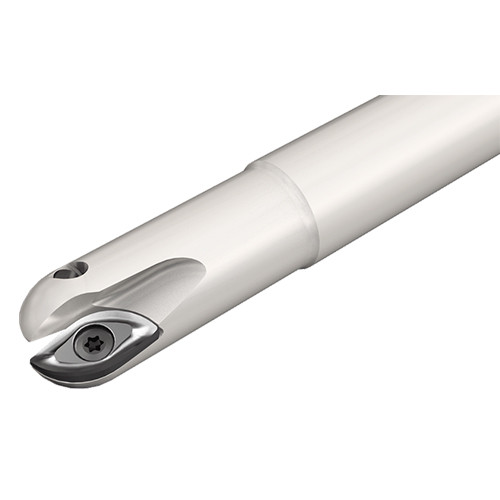

BCM D20-B-C25-CC
Indexable End Mill; 20 mm Dia. × 17 mm LOC × 25 mm Shank Dia. × 200 mm OAL ; Round Shank

Price: Log in For Price
Cutting Diameter (DC/DCX) | 20 mm | Functional Length (LF) | 200 mm |
Cutting Diameter (DC) | 20 mm | Tool Type | Ball nose endmills |
Cutting Item Count (CICT) | 2 | Corner Radius (RE) | 10 mm |
Depth of Cut Maximum (APMX) | 17 mm | Body Half Taper Angle (BHTA) | 1.5 Degrees |
Overall Length (OAL) | 200 mm | Coolant Supply Property (CSP) | Coolant Thru |
Shank Type | Round | Front Type | B |
Application | | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | | Cutting Direction (HAND) | Right Hand |
Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
Master Insert Identification (MIID) | BCR D200-QT | Body Material | Steel |
Head Length (LH) | 90 mm | Connection Code Machine Side (CCMS) | Cylindrical |

Product Features
Family Description | DROPMILL, Ball nose endmills carrying tangent straight edge inserts. Used for semi finishing and finishing at high feed rates. Its unique design provides a fully effective cutter - two cutting edges even at small depths of cut | Country of Origin | Israel |
Remarks | For adaptation, click on More Info |
Shipping Info
Package Weight
1.440
