| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | IC1008 |
| Application | | Ext. 55° Diamond 107.5° Appr. | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | Y Axis for Swiss Type Machines | | Fixing Hole Diameter (D1) | 0.173″ |
| Insert Style | DCGT | Tool Type | Turn Positive Inserts |

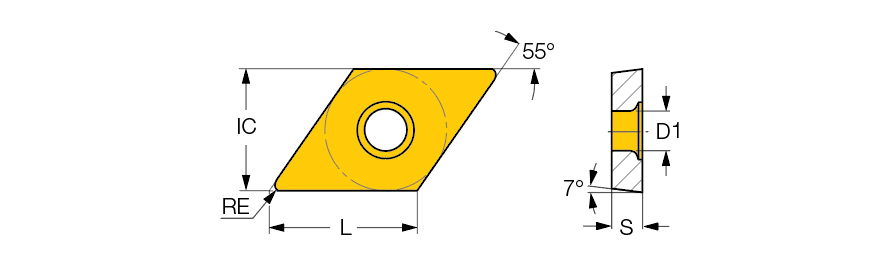

| Corner Radius (RE) | 0.0039″ | Min D.O.C. | 0.003″ |
| Insert Size | 3-. | Depth of Cut Maximum (APMX) | 0.177″ |
| Cutting Edge Length (L) | 0.458″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Insert Thickness (S) | 0.156″ | Max. Turning Feed (ft(max)) | 0.0071 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+TiN |
Product Features

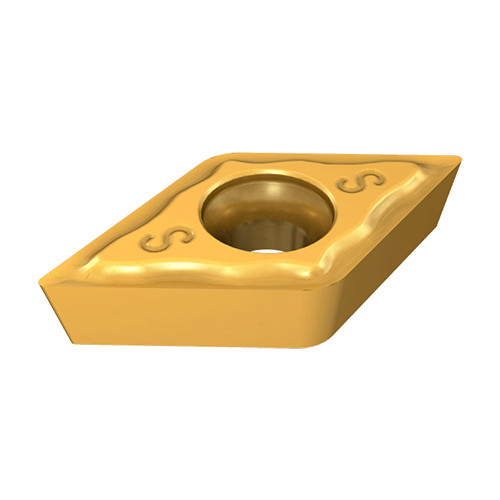

| Family Description | 55° rhombic 7° positive flank inserts used for semi-finishing and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials including soft and exotic alloys. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
