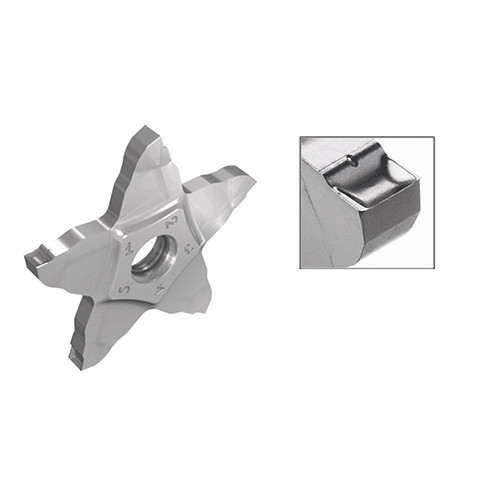

PENTA 34L200PB-6D IC908

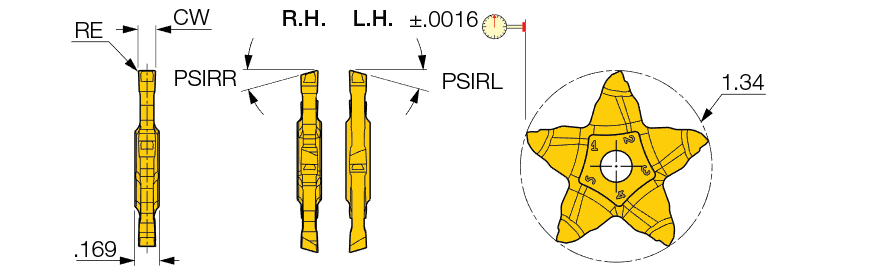

Parting Off Insert; 0.079″ CW × 0.0039″ Corner Radius ; Left Hand ; Carbide ; TiAlN ; IC908
Price: Log in For Price
| Cutting Width (CW) | 0.079″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0039″ | Max. Grooving Feed (fg(max)) | 0.0024 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Cutting Depth Maximum (CDX) | 0.335″ | Chip Breaker Type | PB |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN | Angle | 12 Degrees |

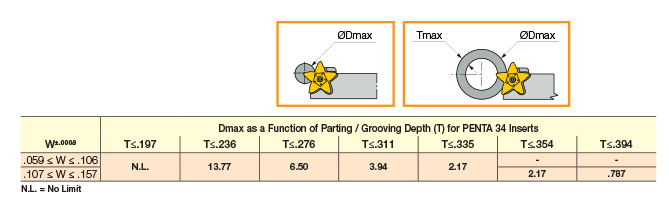

| Grade | IC908 | Work Piece Parting Diameter Maximum (CUTDIA) | 0.709″ |
| Shape | 108° Pentagonal | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Body Material | Carbide |
| Application | | Parting | | Insert Width (W1) | 0.169″ |
Product Features
| Family Description | Pentagonal inserts for parting bearing steel and other ductile materials. | Country of Origin | Israel |
| Remarks | For parting and grooving range, click on More Info. |
