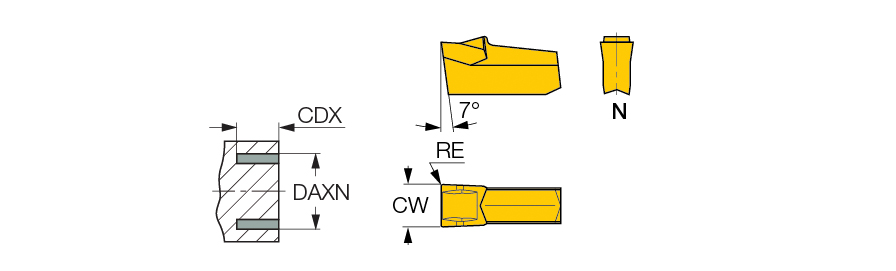

| Cutting Width (CW) | 0.236″ | Axial Groove Outside Diameter Minimum (DAXN) | 1.73″ |
| Corner Radius (RE) | 0.01″ | Max. Face Grooving Feed (ffg(max)) | 0.0079 ″/rev |
| Shape | 90° Rectangular | Min. Face Grooving Feed (ffg(min)) | 0.002 ″/rev |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Inch |
| Grade | IC656 | Coating | TiCN+TiC+TiN |
| Application | | Face Grooving | Face Grooving Along Shaft | | Body Material | Carbide |
| Tool Type | Face Turn-Groove Inserts |
Product Features
| Family Description | SELF-GRIP face grooving inserts. | Country of Origin | Israel |
| Remarks | Grooving depth is limited only by the tool being used |
Shipping Info
LocalField10
0
Package Weight
0.008
