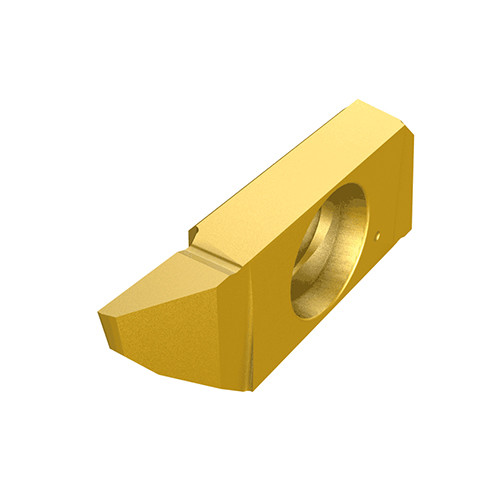

SCIL 22-ELA00-08K0 IC07

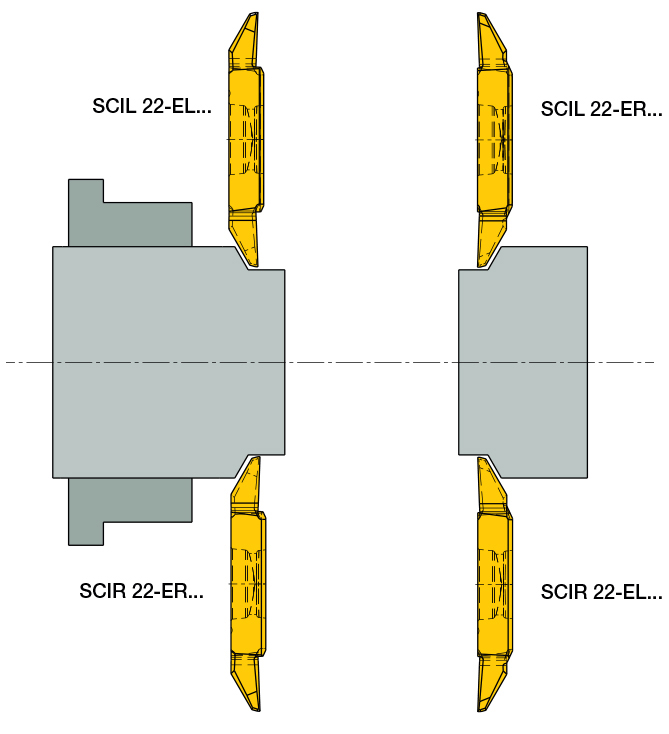

Back turning inserts with a flat top rake for short chipping materials, used on Swiss type automatics and small CNC lathes.
Price: Log in For Price

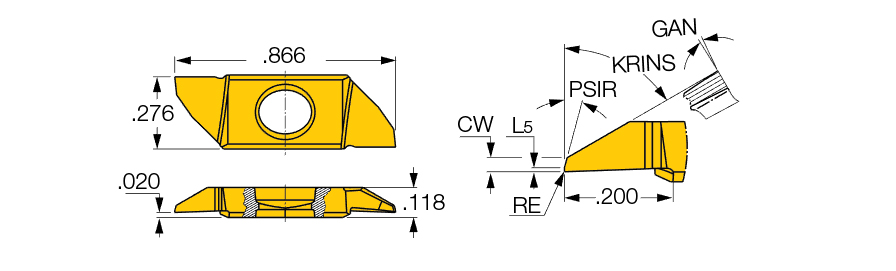

| Cutting Width (CW) | 0.031″ | Shape | Parrallelogram |
| Corner Radius (RE) | 0″ | Cutting Edge Material | Carbide |
| Profile Distance EY (PDY) | 0.012″ | Application | | Ext. Back Turning | |
| Cutting Depth Maximum (CDX) | 0.197″ | Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 3 Degrees | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.276″ | Tool Type | Groove-Turn Precision Inserts |
| Insert Length (INSL) | 0.866″ | Threads per Inch (TPI) | 8 |
| Insert Rake Angle (GAN) | 0 Degrees | Body Material | Carbide |
| Coating | Uncoated | Cutting Edge Length (L) | 0.401″ |
| Grade | IC07 | Height | 0.344″ |
Product Features
| Family Description | Back turning inserts with a flat top rake for short chipping materials, used on Swiss type automatics and small CNC lathes. | Country of Origin | Israel |
Shipping Info
Package Weight
0.014
