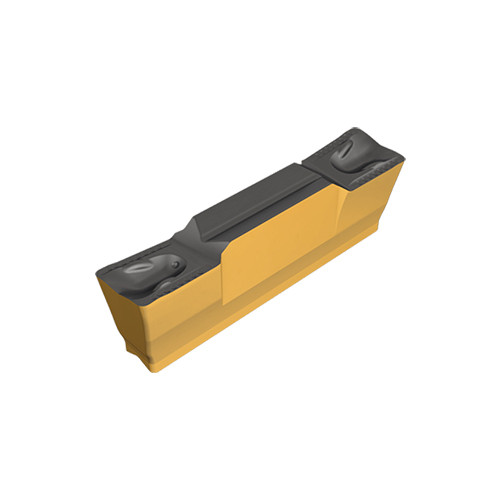

GRIP 4002Y IC807
Double-ended inserts, for turning & grooving in external, internal and face applications.
Price: Log in For Price

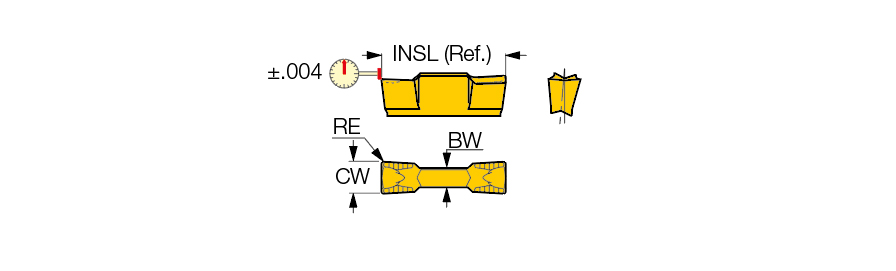

| Cutting Width (CW) | 0.157″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0079″ | Chip Breaker Type | Y |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.748″ | Axial Groove Outside Diameter Minimum (DAXN) | 0.77″ |
| Feed | 0.012 inch/rev | Number of Teeth | 2 |
| Coating | TiAlN+TiN | Measurement Type | Inch |
| Grade | IC807 | Tool Type | Groove-Turn Utility Inserts |
| Shape | 90° Rectangular | Threads per Inch (TPI) | 8 |
| Cutting Edge Material | Carbide | Body Material | Carbide |

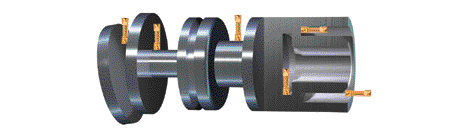

| Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Face Grooving | Int. Groove & Turn | Int. Grooving | Parting | | Cutting Edge Length (L) | 0.401″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Height | 0.344″ |
Product Features
| Family Description | Double-ended inserts, for turning & grooving in external, internal and face applications. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
0.118
