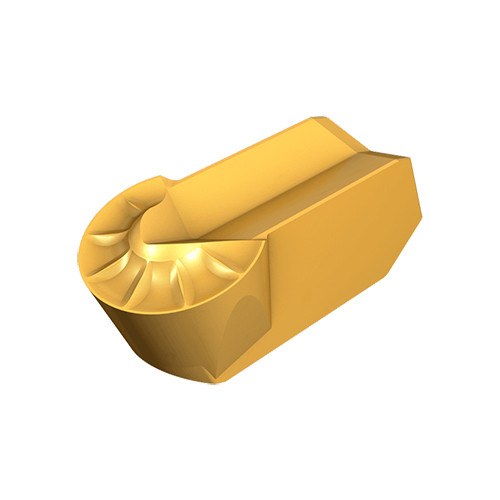

GIMY 525 IC8250
Utility single-ended inserts with F/Y-type chipformers, used for deep grooving and turning at low-to-medium feeds. The full-radius inserts can cut arcs to 250 .
Price: Log in For Price

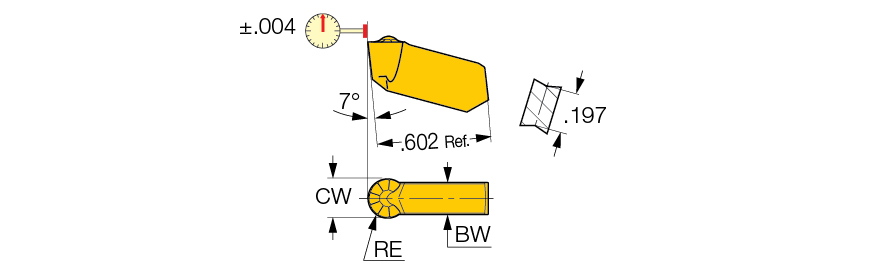

| Cutting Width (CW) | 0.197″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.098″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 7 Degrees | Chip Breaker Type | Y |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.602″ | Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Minimum Bore Diameter (DMIN) | 2.756″ | Measurement Type | Inch |
| Feed | 0.0165 inch/rev | Tool Type | Groove-Turn Utility Inserts |
| Coating | TiCN+Al2O3+TiN | Threads per Inch (TPI) | 8 |
| Grade | IC8250 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
| Application | | Ext. Grooving | Ext. Profiling | Face Grooving Along Shaft | Int. Grooving | Int. Profiling | |
Product Features
| Family Description | Utility single-ended inserts with F/Y-type chipformers, used for deep grooving and turning at low-to-medium feeds. The full-radius inserts can cut arcs to 250 . | Country of Origin | Israel |
| Remarks | DMIN for internal application= 2.76 Can cut arcs to 250° |
Shipping Info
LocalField10
0
Package Weight
0.013
