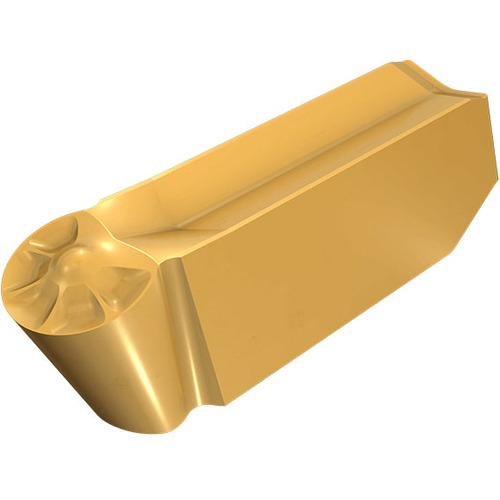

GIPY 8.00-4.00 IC806
Full radius, precision, sharp-edged inserts for external profiling of high temperature alloys. Can cut arcs to 250°, Y-type chipformer for low-to-medium feeds.
Price: Log in For Price

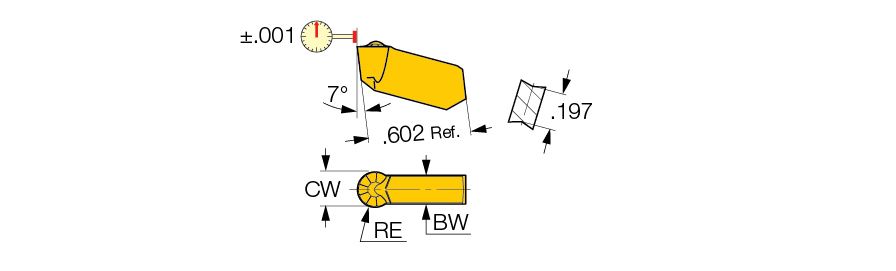

| Cutting Width (CW) | 0.315″ | Application | | Ext. Grooving | Ext. Profiling | Face Grooving Along Shaft | Int. Grooving | Int. Profiling | |
| Corner Radius (RE) | 0.157″ | Applicable Material | | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 7 Degrees | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.344″ | Chip Breaker Type | Y |
| Insert Length (INSL) | 0.602″ | Cutting Position | External |
| Minimum Bore Diameter (DMIN) | 2.756″ | Measurement Type | Inch |
| Feed | 0.0291 inch/rev | Tool Type | Groove-Turn Precision Inserts |
| Coating | AlTiN "SUMO TEC" | Threads per Inch (TPI) | 8 |
| Grade | IC806 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
Product Features
| Family Description | Full radius, precision, sharp-edged inserts for external profiling of high temperature alloys. Can cut arcs to 250°, Y-type chipformer for low-to-medium feeds. | Country of Origin | Israel |
| Remarks | Can cut arcs to 250° DMIN for internal machining = 2.76 |
Shipping Info
Package Weight
0.02
