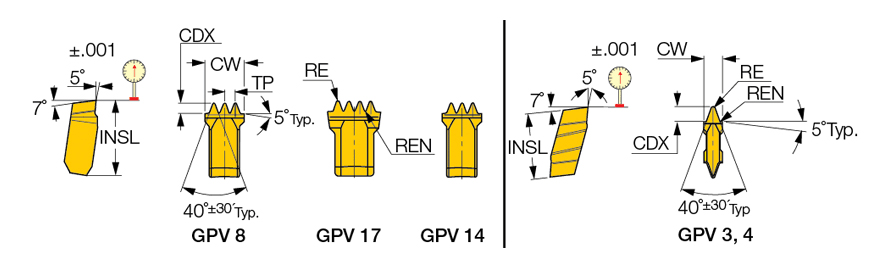

| Cutting Width (CW) | 0.439″ | Application | | Ext. Grooving | Pulley V Grooving | |
| Corner Radius (RE) | 0.018″ | Applicable Material | | Steel | Stainless Steel | |
| Cutting Depth Maximum (CDX) | 0.135″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 7 Degrees | Chip Breaker Type | K |
| Thread Pitch Maximum (TPX) | 0.344″ | Number of Teeth | 3 |
| Insert Length (INSL) | 0.945″ | Thread Pitch (TP) | 0.14″ |
| Insert Rake Angle (GAN) | 5 Degrees | Measurement Type | Inch |
| Feed | 0.0059 inch/rev | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiCN+Al2O3+TiN | Threads per Inch (TPI) | 8 |
| Grade | IC8250 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
Product Features
| Family Description | Precision inserts for grooving multi V-ribbed pulleys | Country of Origin | Israel |
| Remarks | Toolholder seat needs to be modified according to insert profile to ensure clearance. |
Shipping Info
Package Length
.95000
Package Width
.43000
Package Height
.35000
Package Weight
0.057
