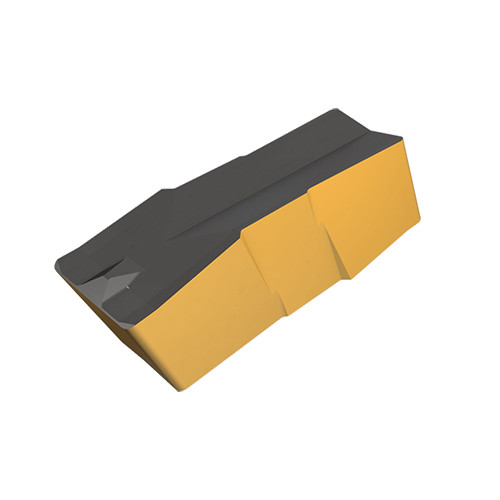

GIP 3.00E-0.40 IC808
Precision, double-ended inserts for turning and grooving. P-type chipformer, medium-to-high feeds.
Price: Log in For Price

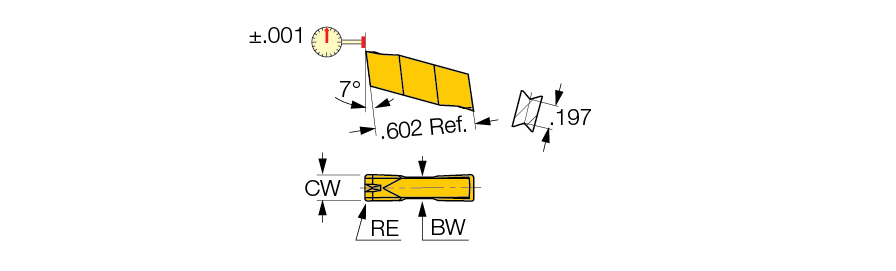

| Cutting Width (CW) | 0.118″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | Side Slotting | Slitting | T Slotting | |
| Corner Radius (RE) | 0.016″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.512″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 7 Degrees | Chip Breaker Type | PT |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.602″ | Axial Groove Outside Diameter Minimum (DAXN) | 6.3″ |
| Minimum Bore Diameter (DMIN) | 2.756″ | Measurement Type | Inch |
| Feed | 0.0087 inch/rev | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiAlN+AlTiN+TiN | Threads per Inch (TPI) | 8 |
| Grade | IC808 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Length (L) | 0.401″ |
| Cutting Edge Material | Carbide | Height | 0.344″ |
Product Features
| Family Description | Precision, double-ended inserts for turning and grooving. P-type chipformer, medium-to-high feeds. | Country of Origin | Israel |
| Remarks | DMIN for internal machining = 2.76 For slitting, side slotting and T-slotting applications, the maximum grooving depth is .5 . |
Shipping Info
Package Length
.69000
Package Width
.22000
Package Height
.10000
Package Weight
0.009
