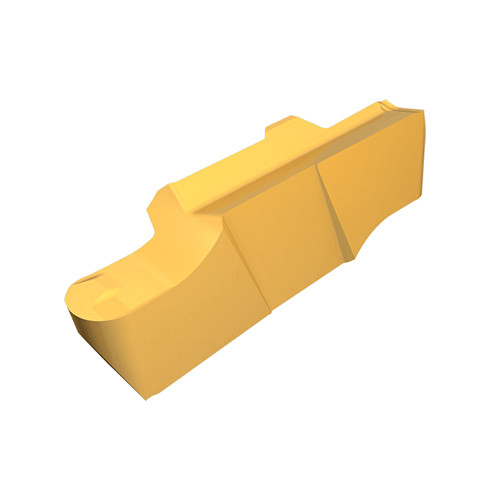

GIPI 0.78-0.1LX IC808
Precision inserts for internal grooving next to a shoulder. Double-ended, low feeds. .787″ min. bore diameter.
Price: Log in For Price

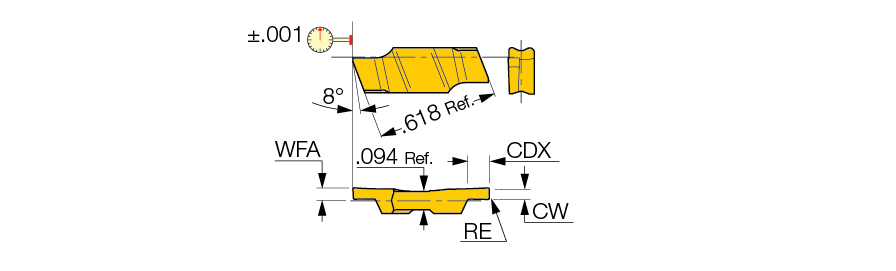

| Cutting Width (CW) | 0.031″ | Application | | Int. Groove & Turn | Int. Grooving | |
| Corner Radius (RE) | 0.004″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.051″ | Cutting Direction (HAND) | Right Hand |
| Clearance Angle Major (AN) | 8 Degrees | Chip Breaker Type | PG |
| Thread Pitch Maximum (TPX) | 0.344″ | Cutting Position | External |
| Insert Length (INSL) | 0.618″ | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.787″ | Tool Type | Groove-Turn Precision Inserts |
| Feed | 0.0016 inch/rev | Threads per Inch (TPI) | 8 |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 | Cutting Edge Length (L) | 0.401″ |
| Shape | 90° Rectangular | Height | 0.344″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Precision inserts for internal grooving next to a shoulder. Double-ended, low feeds. .787″ min. bore diameter. | Country of Origin | Israel |
| Remarks | Tool's pocket should be modified For grooving and recessing only |
Shipping Info
Package Weight
0.009
