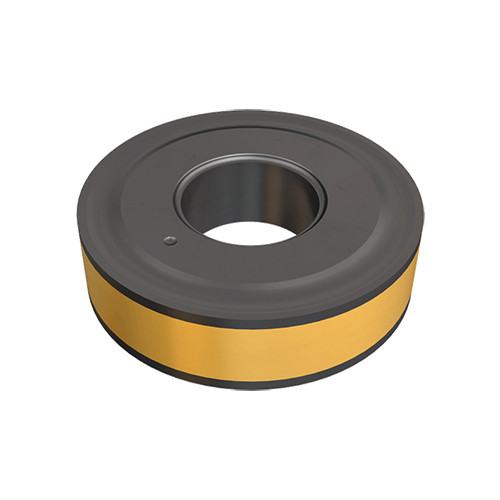

RNMG 43 IC8250
Double-sided round negative insert for medium and rough profiling.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | | Depth of Cut Maximum (APMX) | 0.197″ |
| Application | | Ext. Round Face & Turn | | Min. Turning Feed (ft(min)) | 0.0118 ″/rev |
| Insert Style | RNMG | Max. Turning Feed (ft(max)) | 0.0236 ″/rev |
| Insert Size | 120 | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 0.187″ | Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | G |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Shape | Round |
| Grade | IC8250 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.203″ | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
| Min D.O.C. | 0.079″ |
Product Features
| Family Description | Double-sided round negative insert for medium and rough profiling. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
