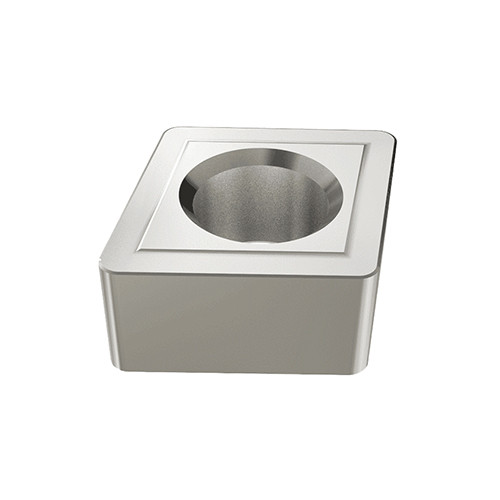

CNMG 432T IN23
80° rhombic double-sided inserts with a T-Land for machining cast iron and hardened steel.
Price: Log in For Price

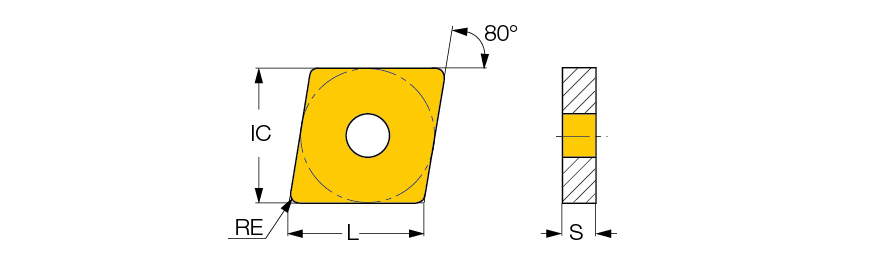

| Applicable Material | | Cast Iron | Hard Materials | | Min D.O.C. | 0.039″ |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Style | CNMG | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Size | 120 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.508″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | G |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Ceramic | Shape | 80° Rhombic |
| Coating | Uncoated | Series/List # | ISOI |
| Grade | IN23 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.203″ | Model No | 8866423 |
| Tool Type | Turn Ultra hard Inserts |
Product Features
| Family Description | 80° rhombic double-sided inserts with a T-Land for machining cast iron and hardened steel. | Country of Origin | Korea |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.009
