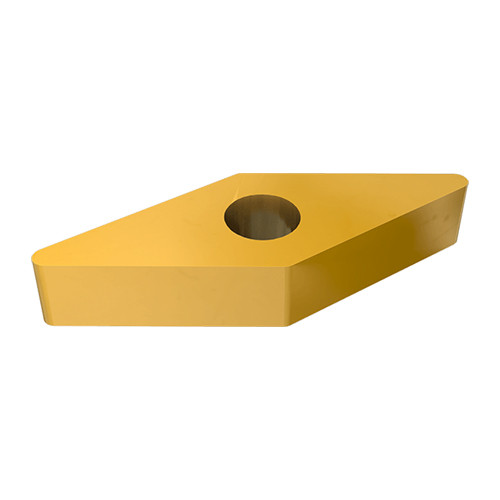

VNGA 331T IN22
Negative 35° rhombic double-sided ceramic inserts for machining cast iron, cast iron and heat resistant alloys.
Price: Log in For Price
| Applicable Material | | Cast Iron | Hard Materials | | Min D.O.C. | 0.028″ |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Int. 35° Diamond 93° Approach | | Depth of Cut Maximum (APMX) | 0.098″ |
| Insert Style | VNGA | Min. Turning Feed (ft(min)) | 0.0024 ″/rev |
| Corner Radius (RE) | 0.0157″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Size | 160 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.654″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | A |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Ceramic | Shape | 35° Rhombic |
| Coating | Uncoated | Series/List # | ISOI |
| Grade | IN22 | Body Material | Carbide |
| Tool Type | Turn Ultra hard Inserts | Model No | 8866423 |
Product Features
| Family Description | Negative 35° rhombic double-sided ceramic inserts for machining cast iron, cast iron and heat resistant alloys. | Country of Origin | S.Korea |

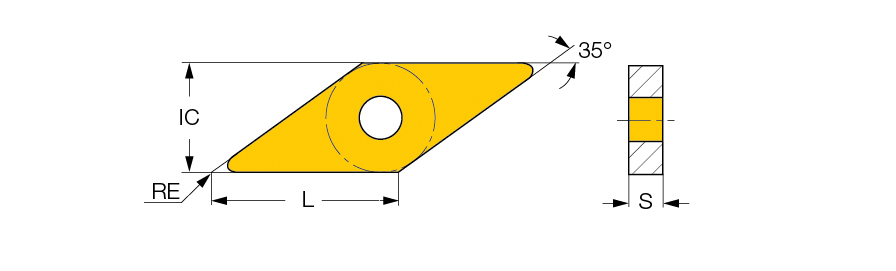

| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
LocalField10
0
Package Weight
0.012
