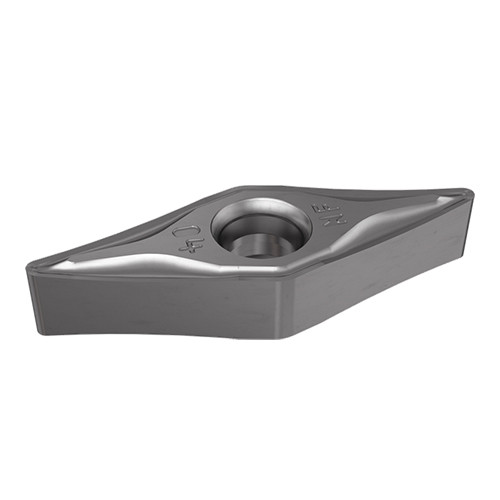

VNMG 2.5-2-NF IC8350
Double-sided 35° rhombic inserts for semi-finishing and finishing applications. Low cutting forces due to very sharp edge and positive rake.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.039″ |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Int. 35° Diamond 93° Approach | | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Style | VNMG | Min. Turning Feed (ft(min)) | 0.0031 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.0094 ″/rev |
| Insert Size | 12T | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.488″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.156″ | Chip Breaker Type | NF |
| Inscribed Circle Diameter (IC) | 0.281″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 35° Rhombic |
| Coating | TiCN+Al2O3+TiN | Series/List # | VNMG 2.5-2-NF |
| Grade | IC8350 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.14″ | Model No | 8866423 |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Double-sided 35° rhombic inserts for semi-finishing and finishing applications. Low cutting forces due to very sharp edge and positive rake. | Country of Origin | Israel |

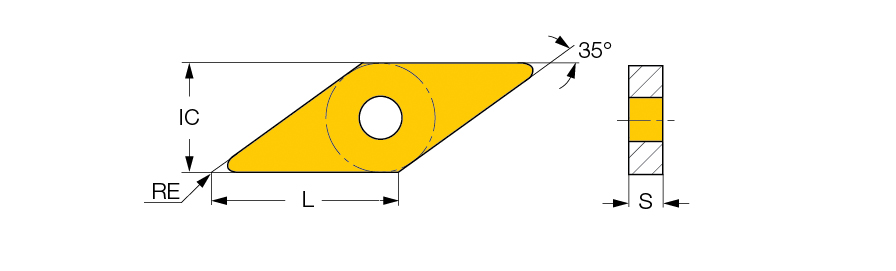

| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.022
